A (hyperrectangular) interval on $ Z^n $ , space of integer n-indices. More...

#include <range.h>

Inheritance diagram for TiledArray::Range:

Public Types
typedef Range	Range_
	This object type. More...

typedef std::size_t	size_type
	Size type. More...

typedef std::vector< size_type >	index
	Coordinate index type. More...

typedef index	index_type
	Coordinate index type, to conform Tensor Working Group spec. More...

typedef detail::SizeArray< const size_type >	size_array
	Size array type. More...

typedef size_array	extent_type
	Range extent type, to conform Tensor Working Group spec. More...

typedef std::size_t	ordinal_type
	Ordinal type, to conform Tensor Working Group spec. More...

typedef detail::RangeIterator< size_type, Range_ >	const_iterator
	Coordinate iterator. More...

Public Member Functions
	Range ()
	Default constructor. More...

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value >::type * = nullptr>
	Range (const Index &lower_bound, const Index &upper_bound)
	Construct range defined by upper and lower bound sequences. More...

template<typename Index1 , typename std::enable_if< std::is_integral< Index1 >::value >::type * = nullptr>
	Range (const std::initializer_list< Index1 > &lower_bound, const std::initializer_list< Index1 > &upper_bound)
	Construct range defined by the upper and lower bound sequences. More...

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value &&std::is_integral< typename Index::value_type >::value >::type * = nullptr>
	Range (const Index &extent)
	Range constructor from a sequence of extents. More...

template<typename Index1 , typename std::enable_if< std::is_integral< Index1 >::value >::type * = nullptr>
	Range (const std::initializer_list< Index1 > &extent)
	Range constructor from an initializer list of extents. More...

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value &&detail::is_pair< typename Index::value_type >::value >::type * = nullptr>
	Range (const Index &bounds)
	Construct range defined by a sequence of {lower,upper} bound pairs. More...

template<typename Index1 , typename Index2 >
	Range (const std::initializer_list< std::pair< Index1, Index2 >> &bounds)
	Construct range defined by an initializer_list of {lower,upper} bound pairs. More...

template<typename... Index, typename std::enable_if< detail::is_integral_list< Index... >::value >::type * = nullptr>
	Range (const Index... extents)
	Range constructor from a pack of extents for each dimension. More...

template<typename ... IndexPairs, typename std::enable_if< detail::is_integral_pair_list< IndexPairs... >::value >::type * = nullptr>
	Range (const IndexPairs... bounds)
	Range constructor from a pack of {lo,up} bounds for each dimension. More...

	Range (const Range_ &other)
	Copy Constructor. More...

	Range (Range_ &&other)
	Copy Constructor. More...

	Range (const Permutation &perm, const Range_ &other)
	Permuting copy constructor. More...

	~Range ()
	Destructor. More...

Range_ &	operator= (const Range_ &other)
	Copy assignment operator. More...

Range_ &	operator= (Range_ &&other)
	Move assignment operator. More...

unsigned int	rank () const
	Rank accessor. More...

const size_type *	lobound_data () const
	Range lower bound data accessor. More...

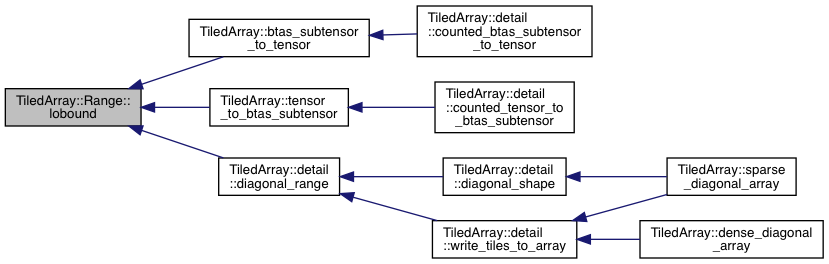

size_array	lobound () const
	Range lower bound accessor. More...

size_type	lobound (size_t dim) const
	Range lower bound element accessor. More...

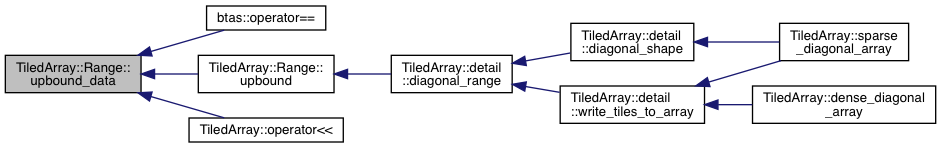

const size_type *	upbound_data () const
	Range upper bound data accessor. More...

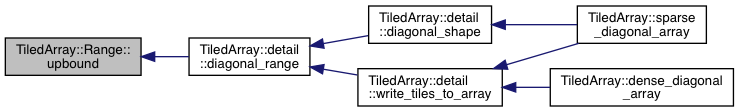

size_array	upbound () const
	Range upper bound accessor. More...

size_type	upbound (size_t dim) const
	Range upped bound element accessor. More...

const size_type *	extent_data () const
	Range extent data accessor. More...

extent_type	extent () const
	Range extent accessor. More...

size_type	extent (size_t dim) const
	Range extent element accessor. More...

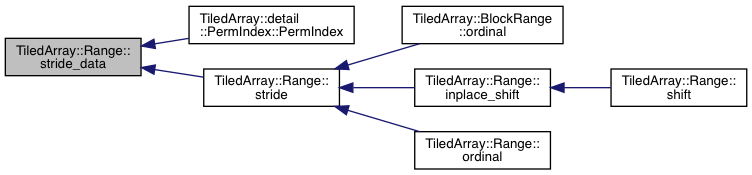

const size_type *	stride_data () const
	Range stride data accessor. More...

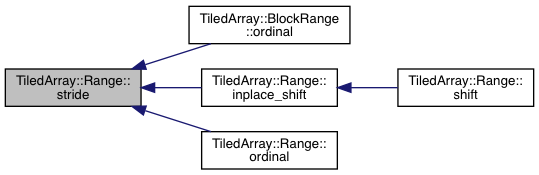

size_array	stride () const
	Range stride accessor. More...

size_type	stride (size_t dim) const
	Range stride element accessor. More...

ordinal_type	volume () const
	Range volume accessor. More...

ordinal_type	area () const

ordinal_type	offset () const
	Range offset. More...

const_iterator	begin () const
	Index iterator factory. More...

const_iterator	end () const
	Index iterator factory. More...

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value, bool >::type * = nullptr>
bool	includes (const Index &index) const
	Check the coordinate to make sure it is within the range. More...

template<typename Integer >
bool	includes (const std::initializer_list< Integer > &index) const
	Check the coordinate to make sure it is within the range. More...

template<typename Ordinal >
std::enable_if< std::is_integral< Ordinal >::value, bool >::type	includes (Ordinal i) const
	Check the ordinal index to make sure it is within the range. More...

template<typename... Index>
std::enable_if<(sizeof...(Index) > 1ul), size_type >::type	includes (const Index &... index) const

Range_ &	operator*= (const Permutation &perm)
	Permute this range. More...

template<typename Index >
Range_ &	resize (const Index &lower_bound, const Index &upper_bound)
	Resize range to a new upper and lower bound. More...

template<typename Index >
Range_ &	inplace_shift (const Index &bound_shift)
	Shift the lower and upper bound of this range. More...

template<typename Index >
Range_	shift (const Index &bound_shift)
	Shift the lower and upper bound of this range. More...

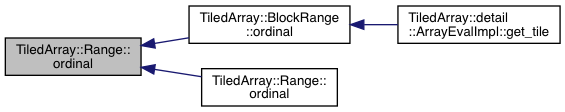

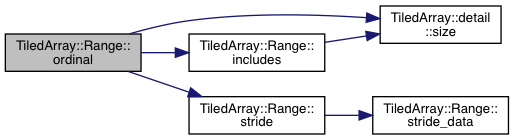

ordinal_type	ordinal (const ordinal_type index) const
	calculate the ordinal index of `i` More...

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value >::type * = nullptr>
ordinal_type	ordinal (const Index &index) const
	calculate the ordinal index of `index` More...

template<typename... Index, typename std::enable_if<(sizeof...(Index) > 1ul>
size_type	ordinal (const Index &... index) const
	calculate the ordinal index of `index` More...

index	idx (size_type index) const
	calculate the coordinate index of the ordinal index, `index`. More...

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value >::type * = nullptr>
const Index &	idx (const Index &i) const
	calculate the index of `i` More...

template<typename Archive , typename std::enable_if< madness::archive::is_input_archive< Archive >::value >::type * = nullptr>
void	serialize (const Archive &ar)

template<typename Archive , typename std::enable_if< madness::archive::is_output_archive< Archive >::value >::type * = nullptr>
void	serialize (const Archive &ar) const

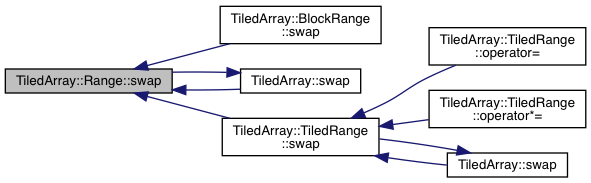

void	swap (Range_ &other)

Protected Attributes
size_type *	data_ = nullptr

size_type	offset_ = 0ul
	Ordinal index offset correction. More...

size_type	volume_ = 0ul
	Total number of elements. More...

unsigned int	rank_ = 0u
	The rank (or number of dimensions) in the range. More...

Friends
class	detail::RangeIterator< size_type, Range_ >

Detailed Description

A (hyperrectangular) interval on $ Z^n $ , space of integer n-indices.

This object represents an n-dimensional, hyperrectangular array of integers. It provides information on the rank (number of dimensions), (nonnegative) lower bound, upper bound, extent (size), and stride of each dimension. It can also be used to test if an element is included in the range with a coordinate index or ordinal offset. Finally, it can be used to convert coordinate indices to ordinal offsets and vice versa. TODO add Range support for negative indices

Definition at line 39 of file range.h.

Member Typedef Documentation

◆ const_iterator

typedef detail::RangeIterator<size_type, Range_> TiledArray::Range::const_iterator

Coordinate iterator.

Definition at line 48 of file range.h.

◆ extent_type

typedef size_array TiledArray::Range::extent_type

Range extent type, to conform Tensor Working Group spec.

Definition at line 46 of file range.h.

◆ index

typedef std::vector<size_type> TiledArray::Range::index

Coordinate index type.

Definition at line 43 of file range.h.

◆ index_type

typedef index TiledArray::Range::index_type

Coordinate index type, to conform Tensor Working Group spec.

Definition at line 44 of file range.h.

◆ ordinal_type

typedef std::size_t TiledArray::Range::ordinal_type

Ordinal type, to conform Tensor Working Group spec.

Definition at line 47 of file range.h.

◆ Range_

typedef Range TiledArray::Range::Range_

This object type.

Definition at line 41 of file range.h.

◆ size_array

typedef detail::SizeArray<const size_type> TiledArray::Range::size_array

Size array type.

Definition at line 45 of file range.h.

◆ size_type

typedef std::size_t TiledArray::Range::size_type

Size type.

Definition at line 42 of file range.h.

Constructor & Destructor Documentation

◆ Range() [1/12]

TiledArray::Range::Range ( )

inline

Default constructor.

Construct a range that has zero rank, volume, and size.

Definition at line 293 of file range.h.

◆ Range() [2/12]

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value >::type * = nullptr>

TiledArray::Range::Range	(	const Index &	lower_bound,
		const Index &	upper_bound
	)

inline

Construct range defined by upper and lower bound sequences.

Construct a range defined by lower_bound and upper_bound.

Template Parameters

Index An array type

Parameters

lower_bound	A sequence of lower bounds for each dimension
upper_bound	A sequence of upper bounds for each dimension

Exceptions

TiledArray::Exception	When the size of `lower_bound` is not equal to that of `upper_bound`.
TiledArray::Exception	When lower_bound[i] >= upper_bound[i]
std::bad_alloc	When memory allocation fails.

Definition at line 307 of file range.h.

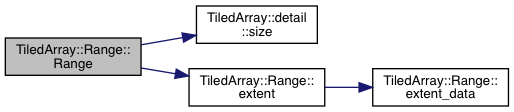

Here is the call graph for this function:

◆ Range() [3/12]

template<typename Index1 , typename std::enable_if< std::is_integral< Index1 >::value >::type * = nullptr>

TiledArray::Range::Range	(	const std::initializer_list< Index1 > &	lower_bound,
		const std::initializer_list< Index1 > &	upper_bound
	)

inline

Construct range defined by the upper and lower bound sequences.

Construct a range defined by lower_bound and upper_bound.

Parameters

lower_bound	An initializer list of lower bounds for each dimension
upper_bound	An initializer list of upper bounds for each dimension

Exceptions

TiledArray::Exception	When the size of `lower_bound` is not equal to that of `upper_bound`.
TiledArray::Exception	When lower_bound[i] >= upper_bound[i]
std::bad_alloc	When memory allocation fails.

Definition at line 329 of file range.h.

Here is the call graph for this function:

◆ Range() [4/12]

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value &&std::is_integral< typename Index::value_type >::value >::type * = nullptr>

TiledArray::Range::Range ( const Index & extent )

inlineexplicit

Range constructor from a sequence of extents.

Construct a range with a lower bound of zero and an upper bound equal to extents.

Template Parameters

Index A vector type

Parameters

extent A vector that defines the size of each dimension

Exceptions

std::bad_alloc When memory allocation fails.

Definition at line 352 of file range.h.

Here is the call graph for this function:

◆ Range() [5/12]

template<typename Index1 , typename std::enable_if< std::is_integral< Index1 >::value >::type * = nullptr>

TiledArray::Range::Range ( const std::initializer_list< Index1 > & extent )

inlineexplicit

Range constructor from an initializer list of extents.

Construct a range with a lower bound of zero and an upper bound equal to extent.

Parameters

extent An initializer list that defines the size of each dimension

Exceptions

std::bad_alloc When memory allocation fails.

Definition at line 370 of file range.h.

Here is the call graph for this function:

◆ Range() [6/12]

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value &&detail::is_pair< typename Index::value_type >::value >::type * = nullptr>

TiledArray::Range::Range ( const Index & bounds )

inline

Construct range defined by a sequence of {lower,upper} bound pairs.

Template Parameters

Index An array (contiguous sequence) type

Parameters

lower_bound	A sequence of lower bounds for each dimension
upper_bound	A sequence of upper bounds for each dimension

Exceptions

TiledArray::Exception	When the size of `lower_bound` is not equal to that of `upper_bound`.
TiledArray::Exception	When lower_bound[i] >= upper_bound[i]
std::bad_alloc	When memory allocation fails.

Definition at line 392 of file range.h.

Here is the call graph for this function:

◆ Range() [7/12]

template<typename Index1 , typename Index2 >

TiledArray::Range::Range ( const std::initializer_list< std::pair< Index1, Index2 >> & bounds )

inline

Construct range defined by an initializer_list of {lower,upper} bound pairs.

Template Parameters

Index An initializer list type

Parameters

lower_bound	A sequence of lower bounds for each dimension
upper_bound	A sequence of upper bounds for each dimension

Exceptions

TiledArray::Exception	When the size of `lower_bound` is not equal to that of `upper_bound`.
TiledArray::Exception	When lower_bound[i] >= upper_bound[i]
std::bad_alloc	When memory allocation fails.

Definition at line 412 of file range.h.

Here is the call graph for this function:

◆ Range() [8/12]

template<typename... Index, typename std::enable_if< detail::is_integral_list< Index... >::value >::type * = nullptr>

TiledArray::Range::Range ( const Index... extents )

inlineexplicit

Range constructor from a pack of extents for each dimension.

Template Parameters

Index Pack of integer types

Parameters

extents A pack of extents for each dimension

Postcondition: Range has a lower bound of 0, and an upper bound of (extents...).

Exceptions

std::bad_alloc When memory allocation fails.

Definition at line 430 of file range.h.

◆ Range() [9/12]

template<typename ... IndexPairs, typename std::enable_if< detail::is_integral_pair_list< IndexPairs... >::value >::type * = nullptr>

TiledArray::Range::Range ( const IndexPairs... bounds )

inlineexplicit

Range constructor from a pack of {lo,up} bounds for each dimension.

Template Parameters

IndexPairs Pack of std::pair's of integer types

Parameters

extents A pack of pairs of lobound and upbound for each dimension

Exceptions

std::bad_alloc When memory allocation fails.

Definition at line 442 of file range.h.

◆ Range() [10/12]

TiledArray::Range::Range ( const Range_ & other )

inline

Copy Constructor.

Parameters

other The range to be copied

Exceptions

std::bad_alloc When memory allocation fails.

Definition at line 451 of file range.h.

◆ Range() [11/12]

TiledArray::Range::Range ( Range_ && other )

inline

Copy Constructor.

Parameters

other The range to be copied

Exceptions

std::bad_alloc When memory allocation fails.

Definition at line 465 of file range.h.

◆ Range() [12/12]

TiledArray::Range::Range	(	const Permutation &	perm,
		const Range_ &	other
	)

inline

Permuting copy constructor.

Parameters

perm	The permutation applied to other
other	The range to be permuted and copied

Exceptions

std::bad_alloc When memory allocation fails.

Definition at line 480 of file range.h.

Here is the call graph for this function:

◆ ~Range()

TiledArray::Range::~Range ( )

inline

Destructor.

Definition at line 499 of file range.h.

Member Function Documentation

◆ area()

ordinal_type TiledArray::Range::area ( ) const

inline

alias to volume() to conform to the Tensor Working Group specification

Returns: The total number of elements in the range.

Exceptions

nothing

Definition at line 647 of file range.h.

◆ begin()

const_iterator TiledArray::Range::begin ( ) const

inline

Index iterator factory.

The iterator dereferences to an index. The order of iteration matches the data layout of a dense tensor.

Returns: An iterator that holds the lower bound index of a tensor

Exceptions

nothing

Definition at line 662 of file range.h.

◆ end()

const_iterator TiledArray::Range::end ( ) const

inline

Index iterator factory.

The iterator dereferences to an index. The order of iteration matches the data layout of a dense tensor.

Returns: An iterator that holds the lower bound element index of a tensor

Exceptions

nothing

Definition at line 670 of file range.h.

◆ extent() [1/2]

extent_type TiledArray::Range::extent ( ) const

inline

Range extent accessor.

Returns: A extent_type that contains the extent for each dimension of the block range.

Exceptions

nothing

Definition at line 601 of file range.h.

Here is the call graph for this function:

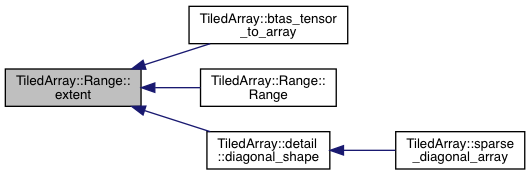

Here is the caller graph for this function:

◆ extent() [2/2]

size_type TiledArray::Range::extent ( size_t dim ) const

inline

Range extent element accessor.

Returns: The extent of dimension dim.

Exceptions

nothing

Definition at line 609 of file range.h.

Here is the call graph for this function:

◆ extent_data()

const size_type* TiledArray::Range::extent_data ( ) const

inline

Range extent data accessor.

Returns: A pointer to the extent data (see extent())

Exceptions

nothing

Definition at line 594 of file range.h.

Here is the caller graph for this function:

◆ idx() [1/2]

index TiledArray::Range::idx ( size_type index ) const

inline

calculate the coordinate index of the ordinal index, index.

Convert an ordinal index to a coordinate index.

Parameters

index Ordinal index

Returns: The index of the ordinal index

Exceptions

TiledArray::Exception	When `index` is not included in this range
std::bad_alloc	When memory allocation fails

Definition at line 877 of file range.h.

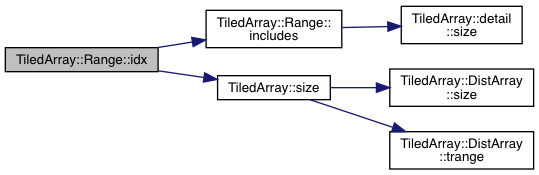

Here is the call graph for this function:

◆ idx() [2/2]

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value >::type * = nullptr>

const Index& TiledArray::Range::idx ( const Index & i ) const

inline

calculate the index of i

This function is just a pass-through so the user can call idx() on a template parameter that can be an index or an ordinal_type.

Parameters

i The index

Returns: i (unchanged)

Definition at line 913 of file range.h.

Here is the call graph for this function:

◆ includes() [1/4]

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value, bool >::type * = nullptr>

bool TiledArray::Range::includes ( const Index & index ) const

inline

Check the coordinate to make sure it is within the range.

Template Parameters

Index The coordinate index array type

Parameters

index The coordinate index to check for inclusion in the range

Returns: true when i >= lobound and i < upbound, otherwise false

Exceptions

TiledArray::Exception When the rank of this range is not equal to the size of the index.

Definition at line 682 of file range.h.

Here is the call graph for this function:

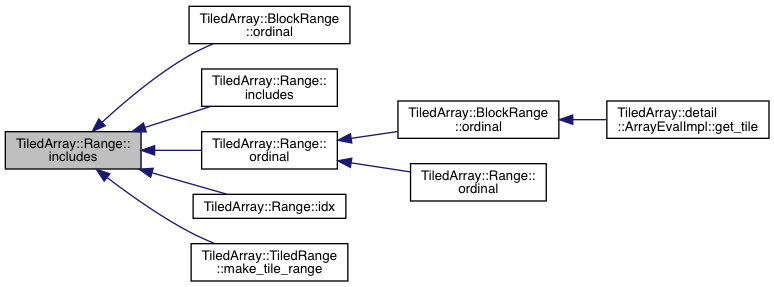

Here is the caller graph for this function:

◆ includes() [2/4]

template<typename Integer >

bool TiledArray::Range::includes ( const std::initializer_list< Integer > & index ) const

inline

Check the coordinate to make sure it is within the range.

Template Parameters

Integer An integer type

Parameters

index The element index to check for inclusion in the range, as an std::initializer_list<Integer>

Returns: true when i >= lobound and i < upbound, otherwise false

Exceptions

TiledArray::Exception When the rank of this range is not equal to the size of the index.

Definition at line 709 of file range.h.

◆ includes() [3/4]

template<typename Ordinal >

std::enable_if<std::is_integral<Ordinal>::value, bool>::type TiledArray::Range::includes ( Ordinal i ) const

inline

Check the ordinal index to make sure it is within the range.

Parameters

i	The ordinal index to check for inclusion in the range

Returns: true when i >= 0 and i < volume

Exceptions

nothing

Definition at line 721 of file range.h.

◆ includes() [4/4]

template<typename... Index>

std::enable_if<(sizeof...(Index) > 1ul), size_type>::type TiledArray::Range::includes ( const Index &... index ) const

inline

Definition at line 727 of file range.h.

Here is the call graph for this function:

◆ inplace_shift()

template<typename Index >

Range_& TiledArray::Range::inplace_shift ( const Index & bound_shift )

inline

Shift the lower and upper bound of this range.

Template Parameters

Index The shift array type

Parameters

bound_shift The shift to be applied to the range

Returns: A reference to this range

Definition at line 778 of file range.h.

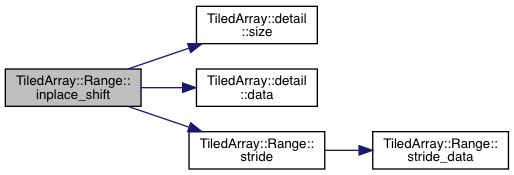

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lobound() [1/2]

size_array TiledArray::Range::lobound ( ) const

inline

Range lower bound accessor.

Returns: A size_array that contains the lower bounds for each dimension of the block range.

Exceptions

nothing

Definition at line 555 of file range.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lobound() [2/2]

size_type TiledArray::Range::lobound ( size_t dim ) const

inline

Range lower bound element accessor.

Returns: The lower bound of dimension dim.

Exceptions

nothing

Definition at line 561 of file range.h.

Here is the call graph for this function:

◆ lobound_data()

const size_type* TiledArray::Range::lobound_data ( ) const

inline

Range lower bound data accessor.

Returns: A pointer to the lower bound data (see lobound())

Exceptions

nothing

Definition at line 548 of file range.h.

Here is the caller graph for this function:

◆ offset()

ordinal_type TiledArray::Range::offset ( ) const

inline

Range offset.

The range ordinal offset is equal to the dot product of the lower bound and stride vector. It is used internally to compute ordinal offsets.

Returns: The ordinal index offset

Definition at line 654 of file range.h.

◆ operator*=()

Range & TiledArray::Range::operator*= ( const Permutation & perm )

inline

Permute this range.

Parameters

perm	The permutation to be applied to this range

Returns: A reference to this range

Exceptions

TiledArray::Exception	When the rank of this range is not equal to the rank of the permutation.
std::bad_alloc	When memory allocation fails.

Definition at line 1031 of file range.h.

Here is the call graph for this function:

◆ operator=() [1/2]

Range_& TiledArray::Range::operator= ( const Range_ & other )

inline

Copy assignment operator.

Parameters

other The range to be copied

Returns: A reference to this object

Exceptions

std::bad_alloc When memory allocation fails.

Definition at line 506 of file range.h.

◆ operator=() [2/2]

Range_& TiledArray::Range::operator= ( Range_ && other )

inline

Move assignment operator.

Parameters

other The range to be copied

Returns: A reference to this object

Exceptions

nothing

Definition at line 524 of file range.h.

◆ ordinal() [1/3]

ordinal_type TiledArray::Range::ordinal ( const ordinal_type index ) const

inline

calculate the ordinal index of i

This function is just a pass-through so the user can call ordinal() on a template parameter that can be a coordinate index or an integral.

Parameters

index Ordinal index

Returns: index (unchanged)

Exceptions

When	`index` is not included in this range

Definition at line 826 of file range.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ordinal() [2/3]

template<typename Index , typename std::enable_if<! std::is_integral< Index >::value >::type * = nullptr>

ordinal_type TiledArray::Range::ordinal ( const Index & index ) const

inline

calculate the ordinal index of index

Convert a coordinate index to an ordinal index.

Template Parameters

Index A coordinate index type (array type)

Parameters

index The index to be converted to an ordinal index

Returns: The ordinal index of index

Exceptions

When	`index` is not included in this range.

Definition at line 840 of file range.h.

Here is the call graph for this function:

◆ ordinal() [3/3]

template<typename... Index, typename std::enable_if<(sizeof...(Index) > 1ul>

size_type TiledArray::Range::ordinal ( const Index &... index ) const

inline

calculate the ordinal index of index

Convert a coordinate index to an ordinal index.

Template Parameters

Index A coordinate index type (array type)

Parameters

index The index to be converted to an ordinal index

Returns: The ordinal index of index

Exceptions

When	`index` is not included in this range.

Definition at line 865 of file range.h.

Here is the call graph for this function:

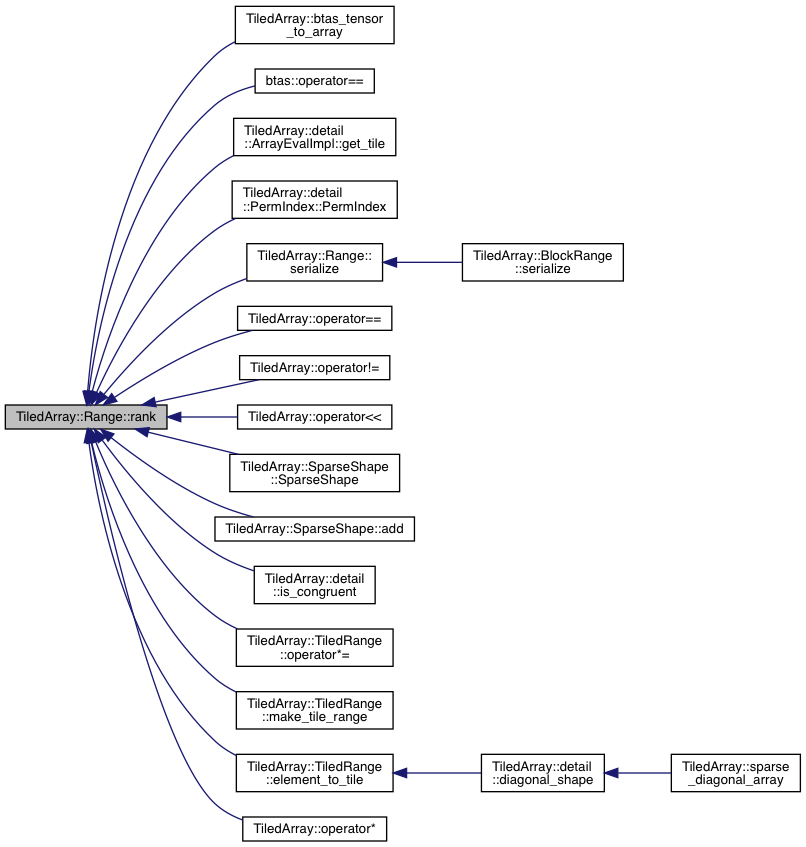

◆ rank()

unsigned int TiledArray::Range::rank ( ) const

inline

Rank accessor.

Returns: The rank (number of dimensions) of this range

Exceptions

nothing

Definition at line 542 of file range.h.

Here is the caller graph for this function:

◆ resize()

template<typename Index >

Range_& TiledArray::Range::resize	(	const Index &	lower_bound,
		const Index &	upper_bound
	)

inline

Resize range to a new upper and lower bound.

Template Parameters

Index An array type

Parameters

lower_bound	The lower bounds of the N-dimensional range
upper_bound	The upper bound of the N-dimensional range

Returns: A reference to this range

Exceptions

TiledArray::Exception	When the size of `lower_bound` is not equal to that of `upper_bound`.
TiledArray::Exception	When `lower_bound[i] >= upper_bound[i]`
std::bad_alloc	When memory allocation fails.

Definition at line 754 of file range.h.

Here is the call graph for this function:

◆ serialize() [1/2]

template<typename Archive , typename std::enable_if< madness::archive::is_input_archive< Archive >::value >::type * = nullptr>

void TiledArray::Range::serialize ( const Archive & ar )

inline

Definition at line 920 of file range.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serialize() [2/2]

template<typename Archive , typename std::enable_if< madness::archive::is_output_archive< Archive >::value >::type * = nullptr>

void TiledArray::Range::serialize ( const Archive & ar ) const

inline

Definition at line 939 of file range.h.

◆ shift()

template<typename Index >

Range_ TiledArray::Range::shift ( const Index & bound_shift )

inline

Shift the lower and upper bound of this range.

Template Parameters

Index The shift array type

Parameters

bound_shift The shift to be applied to the range

Returns: A shifted copy of this range

Definition at line 813 of file range.h.

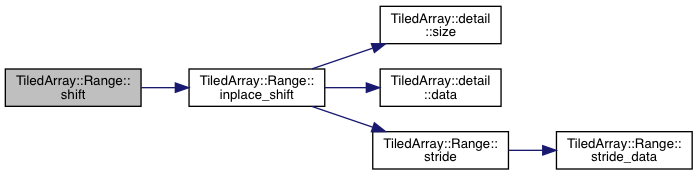

Here is the call graph for this function:

◆ stride() [1/2]

size_array TiledArray::Range::stride ( ) const

inline

Range stride accessor.

Returns: A size_array that contains the stride for each dimension of the block range.

Exceptions

nothing

Definition at line 625 of file range.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ stride() [2/2]

size_type TiledArray::Range::stride ( size_t dim ) const

inline

Range stride element accessor.

Returns: The stride of dimension dim.

Exceptions

nothing

Definition at line 633 of file range.h.

Here is the call graph for this function:

◆ stride_data()

const size_type* TiledArray::Range::stride_data ( ) const

inline

Range stride data accessor.

Returns: A pointer to the stride data (see stride())

Exceptions

nothing

Definition at line 618 of file range.h.

Here is the caller graph for this function:

◆ swap()

void TiledArray::Range::swap ( Range_ & other )

inline

Definition at line 943 of file range.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ upbound() [1/2]

size_array TiledArray::Range::upbound ( ) const

inline

Range upper bound accessor.

Returns: A size_array that contains the upper bounds for each dimension of the block range.

Exceptions

nothing

Definition at line 577 of file range.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ upbound() [2/2]

size_type TiledArray::Range::upbound ( size_t dim ) const

inline

Range upped bound element accessor.

Returns: The upper bound of dimension dim.

Exceptions

nothing

Definition at line 585 of file range.h.

Here is the call graph for this function:

◆ upbound_data()

const size_type* TiledArray::Range::upbound_data ( ) const

inline

Range upper bound data accessor.

Returns: A pointer to the upper bound data (see upbound())

Exceptions

nothing

Definition at line 570 of file range.h.

Here is the caller graph for this function:

◆ volume()

ordinal_type TiledArray::Range::volume ( ) const

inline

Range volume accessor.

Returns: The total number of elements in the range.

Exceptions

nothing

Definition at line 642 of file range.h.

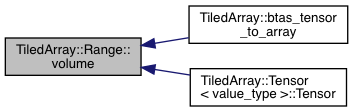

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ detail::RangeIterator< size_type, Range_ >

friend class detail::RangeIterator< size_type, Range_ >

friend

Definition at line 49 of file range.h.

Member Data Documentation

◆ data_

size_type* TiledArray::Range::data_ = nullptr

protected

An array that holds the dimension information of the range. The layout of the array is:

< { lobound[0], ..., lobound[rank_ - 1],
<   upbound[0], ..., upbound[rank_ - 1],
<   extent[0],  ..., extent[rank_ - 1],
<   stride[0],  ..., stride[rank_ - 1] }
<

Definition at line 53 of file range.h.

◆ offset_

size_type TiledArray::Range::offset_ = 0ul

protected

Ordinal index offset correction.

Definition at line 62 of file range.h.

◆ rank_

unsigned int TiledArray::Range::rank_ = 0u

protected

The rank (or number of dimensions) in the range.

Definition at line 64 of file range.h.

◆ volume_

size_type TiledArray::Range::volume_ = 0ul

protected

Total number of elements.

Definition at line 63 of file range.h.

The documentation for this class was generated from the following file:

TiledArray/range.h

Public Types

Public Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ const_iterator

◆ extent_type

◆ index

◆ index_type

◆ ordinal_type

◆ Range_

◆ size_array

◆ size_type

Constructor & Destructor Documentation

◆ Range() [1/12]

◆ Range() [2/12]

◆ Range() [3/12]

◆ Range() [4/12]

◆ Range() [5/12]

◆ Range() [6/12]

◆ Range() [7/12]

◆ Range() [8/12]

◆ Range() [9/12]

◆ Range() [10/12]

◆ Range() [11/12]

◆ Range() [12/12]

◆ ~Range()

Member Function Documentation

◆ area()

◆ begin()

◆ end()

◆ extent() [1/2]

◆ extent() [2/2]

◆ extent_data()

◆ idx() [1/2]

◆ idx() [2/2]

◆ includes() [1/4]

◆ includes() [2/4]

◆ includes() [3/4]

◆ includes() [4/4]

◆ inplace_shift()

◆ lobound() [1/2]

◆ lobound() [2/2]

◆ lobound_data()

◆ offset()

◆ operator*=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ ordinal() [1/3]

◆ ordinal() [2/3]

◆ ordinal() [3/3]

◆ rank()

◆ resize()

◆ serialize() [1/2]

◆ serialize() [2/2]

◆ shift()

◆ stride() [1/2]

◆ stride() [2/2]

◆ stride_data()

◆ swap()

◆ upbound() [1/2]

◆ upbound() [2/2]

◆ upbound_data()

◆ volume()

Friends And Related Function Documentation

◆ detail::RangeIterator< size_type, Range_ >

Member Data Documentation

◆ data_

◆ offset_

◆ rank_

◆ volume_
