Contraction to *GEMM helper. More...

#include <gemm_helper.h>

Public Member Functions
	GemmHelper (const madness::cblas::CBLAS_TRANSPOSE left_op, const madness::cblas::CBLAS_TRANSPOSE right_op, const unsigned int result_rank, const unsigned int left_rank, const unsigned int right_rank)

	GemmHelper (const GemmHelper &other)
	Functor copy constructor. More...

GemmHelper &	operator= (const GemmHelper &other)
	Functor assignment operator. More...

unsigned int	num_contract_ranks () const
	Compute the number of contracted ranks. More...

unsigned int	result_rank () const
	Result rank accessor. More...

unsigned int	left_rank () const
	Left-hand argument rank accessor. More...

unsigned int	right_rank () const
	Right-hand argument rank accessor. More...

unsigned int	left_inner_begin () const

unsigned int	left_inner_end () const

unsigned int	left_outer_begin () const

unsigned int	left_outer_end () const

unsigned int	right_inner_begin () const

unsigned int	right_inner_end () const

unsigned int	right_outer_begin () const

unsigned int	right_outer_end () const

template<typename R , typename Left , typename Right >
R	make_result_range (const Left &left, const Right &right) const
	Construct a result range based on `left` and `right` ranges. More...

template<typename Left , typename Result >
bool	left_result_congruent (const Left &left, const Result &result) const
	Test that the outer dimensions of left are congruent (have equal extent) with that of the result tensor. More...

template<typename Right , typename Result >
bool	right_result_congruent (const Right &right, const Result &result) const
	Test that the outer dimensions of right are congruent (have equal extent) with that of the result tensor. More...

template<typename Left , typename Right >
bool	left_right_congruent (const Left &left, const Right &right) const
	Test that the inner dimensions of left are congruent (have equal extent) with that of right. More...

template<typename Left , typename Right >
void	compute_matrix_sizes (integer &m, integer &n, integer &k, const Left &left, const Right &right) const
	Compute the matrix dimension that can be used in a *GEMM call. More...

madness::cblas::CBLAS_TRANSPOSE	left_op () const

madness::cblas::CBLAS_TRANSPOSE	right_op () const

Detailed Description

Contraction to *GEMM helper.

This object is used to convert tensor contraction to *GEMM operations by providing information on how to fuse dimensions

Definition at line 39 of file gemm_helper.h.

Constructor & Destructor Documentation

◆ GemmHelper() [1/2]

TiledArray::math::GemmHelper::GemmHelper	(	const madness::cblas::CBLAS_TRANSPOSE	left_op,
		const madness::cblas::CBLAS_TRANSPOSE	right_op,
		const unsigned int	result_rank,
		const unsigned int	left_rank,
		const unsigned int	right_rank
	)

inline

Definition at line 64 of file gemm_helper.h.

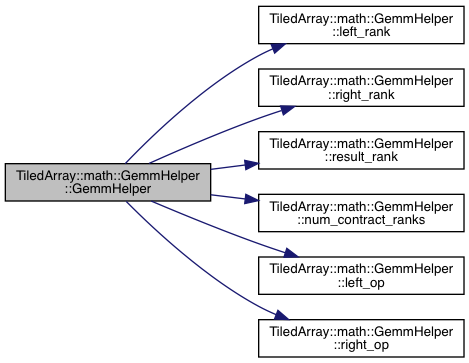

Here is the call graph for this function:

◆ GemmHelper() [2/2]

TiledArray::math::GemmHelper::GemmHelper ( const GemmHelper & other )

inline

Functor copy constructor.

Shallow copy of this functor

Parameters

other The functor to be copied

Definition at line 105 of file gemm_helper.h.

Member Function Documentation

◆ compute_matrix_sizes()

template<typename Left , typename Right >

void TiledArray::math::GemmHelper::compute_matrix_sizes	(	integer &	m,
		integer &	n,
		integer &	k,
		const Left &	left,
		const Right &	right
	)		const

inline

Compute the matrix dimension that can be used in a *GEMM call.

Template Parameters

Left	The left-hand range type
Right	The right-hand range type

Parameters

[out]	m	The number of rows in left-hand and result matrices
[out]	n	The number of columns in the right-hand result matrices
[out]	k	The number of columns in the left-hand matrix and the number of rows in the right-hand matrix
[in]	left	The left-hand range object
[in]	right	The right-hand range object

Definition at line 252 of file gemm_helper.h.

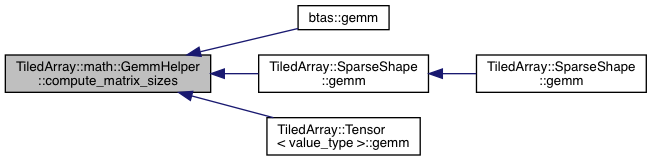

Here is the caller graph for this function:

◆ left_inner_begin()

unsigned int TiledArray::math::GemmHelper::left_inner_begin ( ) const

inline

Definition at line 146 of file gemm_helper.h.

Here is the caller graph for this function:

◆ left_inner_end()

unsigned int TiledArray::math::GemmHelper::left_inner_end ( ) const

inline

Definition at line 147 of file gemm_helper.h.

Here is the caller graph for this function:

◆ left_op()

madness::cblas::CBLAS_TRANSPOSE TiledArray::math::GemmHelper::left_op ( ) const

inline

Definition at line 273 of file gemm_helper.h.

Here is the caller graph for this function:

◆ left_outer_begin()

unsigned int TiledArray::math::GemmHelper::left_outer_begin ( ) const

inline

Definition at line 148 of file gemm_helper.h.

Here is the caller graph for this function:

◆ left_outer_end()

unsigned int TiledArray::math::GemmHelper::left_outer_end ( ) const

inline

Definition at line 149 of file gemm_helper.h.

Here is the caller graph for this function:

◆ left_rank()

unsigned int TiledArray::math::GemmHelper::left_rank ( ) const

inline

Left-hand argument rank accessor.

Returns: The rank of the left-hand tile

Definition at line 139 of file gemm_helper.h.

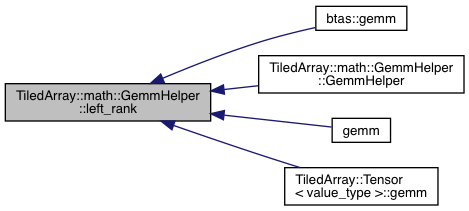

Here is the caller graph for this function:

◆ left_result_congruent()

template<typename Left , typename Result >

bool TiledArray::math::GemmHelper::left_result_congruent	(	const Left &	left,
		const Result &	result
	)		const

inline

Test that the outer dimensions of left are congruent (have equal extent) with that of the result tensor.

This function can test the start, finish, or size arrays of range objects.

Template Parameters

Left	The left-hand size array type
Result	The result size array type

Parameters

left	The left-hand size array to be tested
result	The result size array to be tested

Returns: true if The outer dimensions of left are congruent with that of result

Definition at line 205 of file gemm_helper.h.

Here is the caller graph for this function:

◆ left_right_congruent()

template<typename Left , typename Right >

bool TiledArray::math::GemmHelper::left_right_congruent	(	const Left &	left,
		const Right &	right
	)		const

inline

Test that the inner dimensions of left are congruent (have equal extent) with that of right.

This function can test the start, finish, or size arrays of range objects.

Template Parameters

Left	The left-hand size array type
Right	The right-hand size array type

Parameters

left	The left-hand size array to be tested
right	The right-hand size array to be tested

Returns: true if the outer dimensions of left are congruent with that of right, other false.

Definition at line 236 of file gemm_helper.h.

Here is the caller graph for this function:

◆ make_result_range()

template<typename R , typename Left , typename Right >

R TiledArray::math::GemmHelper::make_result_range	(	const Left &	left,
		const Right &	right
	)		const

inline

Construct a result range based on left and right ranges.

Template Parameters

R	The result range type
Left	The left-hand range type
Right	The right-hand range type

Parameters

left	The left-hand range
right	The right-hand range

Returns: A range object that can be used in a tensor contraction defined by this object

Definition at line 166 of file gemm_helper.h.

Here is the caller graph for this function:

◆ num_contract_ranks()

unsigned int TiledArray::math::GemmHelper::num_contract_ranks ( ) const

inline

Compute the number of contracted ranks.

Returns: The number of ranks that are summed by this operation

Definition at line 127 of file gemm_helper.h.

Here is the caller graph for this function:

◆ operator=()

GemmHelper& TiledArray::math::GemmHelper::operator= ( const GemmHelper & other )

inline

Functor assignment operator.

Parameters

other The functor to be copied

Definition at line 114 of file gemm_helper.h.

◆ result_rank()

unsigned int TiledArray::math::GemmHelper::result_rank ( ) const

inline

Result rank accessor.

Returns: The rank of the result tile

Definition at line 134 of file gemm_helper.h.

Here is the caller graph for this function:

◆ right_inner_begin()

unsigned int TiledArray::math::GemmHelper::right_inner_begin ( ) const

inline

Definition at line 151 of file gemm_helper.h.

◆ right_inner_end()

unsigned int TiledArray::math::GemmHelper::right_inner_end ( ) const

inline

Definition at line 152 of file gemm_helper.h.

◆ right_op()

madness::cblas::CBLAS_TRANSPOSE TiledArray::math::GemmHelper::right_op ( ) const

inline

Definition at line 274 of file gemm_helper.h.

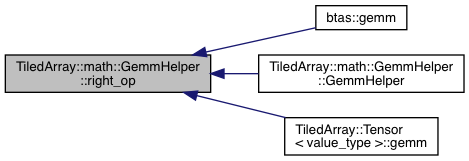

Here is the caller graph for this function:

◆ right_outer_begin()

unsigned int TiledArray::math::GemmHelper::right_outer_begin ( ) const

inline

Definition at line 153 of file gemm_helper.h.

Here is the caller graph for this function:

◆ right_outer_end()

unsigned int TiledArray::math::GemmHelper::right_outer_end ( ) const

inline

Definition at line 154 of file gemm_helper.h.

Here is the caller graph for this function:

◆ right_rank()

unsigned int TiledArray::math::GemmHelper::right_rank ( ) const

inline

Right-hand argument rank accessor.

Returns: The rank of the right-hand tile

Definition at line 144 of file gemm_helper.h.

Here is the caller graph for this function:

◆ right_result_congruent()

template<typename Right , typename Result >

bool TiledArray::math::GemmHelper::right_result_congruent	(	const Right &	right,
		const Result &	result
	)		const

inline

Test that the outer dimensions of right are congruent (have equal extent) with that of the result tensor.

This function can test the start, finish, or size arrays of range objects.

Template Parameters

Right	The right-hand size array type
Result	The result size array type

Parameters

right	The right-hand size array to be tested
result	The result size array to be tested

Returns: true if The outer dimensions of right are congruent with that of result

Definition at line 220 of file gemm_helper.h.

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

TiledArray/math/gemm_helper.h
