Namespaces
	TiledArray::symmetry

Classes
class	TiledArray::Permutation
	Permutation of a sequence of objects indexed by base-0 indices. More...

class	TiledArray::symmetry::PermutationGroup
	Permutation group. More...

class	TiledArray::symmetry::SymmetricGroup
	Symmetric group. More...

Functions
bool	TiledArray::operator== (const Permutation &p1, const Permutation &p2)
	Permutation equality operator. More...

bool	TiledArray::operator!= (const Permutation &p1, const Permutation &p2)
	Permutation inequality operator. More...

bool	TiledArray::operator< (const Permutation &p1, const Permutation &p2)
	Permutation less-than operator. More...

std::ostream &	TiledArray::operator<< (std::ostream &output, const Permutation &p)
	Add permutation to an output stream. More...

Permutation	TiledArray::operator- (const Permutation &perm)
	Inverse permutation operator. More...

Permutation	TiledArray::operator* (const Permutation &p1, const Permutation &p2)
	Permutation multiplication operator. More...

Permutation &	TiledArray::operator*= (Permutation &p1, const Permutation &p2)
	return *this ^ other More...

Permutation	TiledArray::operator^ (const Permutation &perm, int n)
	Raise `perm` to the n-th power. More...

bool	TiledArray::symmetry::operator== (const PermutationGroup &p1, const PermutationGroup &p2)
	PermutationGroup equality operator. More...

bool	TiledArray::symmetry::operator!= (const PermutationGroup &p1, const PermutationGroup &p2)
	PermutationGroup inequality operator. More...

bool	TiledArray::symmetry::operator< (const PermutationGroup &p1, const PermutationGroup &p2)
	PermutationGroup less-than operator. More...

std::ostream &	TiledArray::symmetry::operator<< (std::ostream &output, const PermutationGroup &p)
	Add permutation group to an output stream. More...

template<typename MultiIndex >
bool	TiledArray::symmetry::is_lexicographically_smallest (const MultiIndex &idx, const PermutationGroup &pg)

PermutationGroup	TiledArray::symmetry::conjugate (const PermutationGroup &G, const PermutationGroup::Permutation &h)
	Computes conjugate permutation group obtained by the action of a permutation. More...

PermutationGroup	TiledArray::symmetry::intersect (const PermutationGroup &G1, const PermutationGroup &G2)

template<typename Set >
PermutationGroup	TiledArray::symmetry::stabilizer (const PermutationGroup &G, const Set &f)
	Computes the largest subgroup of a permutation group that leaves the given set of indices fixed. More...

Detailed Description

Function Documentation

◆ conjugate()

PermutationGroup TiledArray::symmetry::conjugate	(	const PermutationGroup &	G,
		const PermutationGroup::Permutation &	h
	)

inline

Computes conjugate permutation group obtained by the action of a permutation.

Conjugate of group $ G $ under the action of element $ h $ is a group $\{ a: a = h g h^{-1}, \forall g \in G \}$ .

Note: Since all permutation groups are subgroups of the symmetric group on the "infinite" set $\{ 0, 1, \dots \}$ , this can be used to "shift" the domain of G by action of h that permutes elements in the domain of G with those outside its domain, e.g. if on domain $\{0,1\}$ , conjugation with will produce on domain $\{0,2\}$ .

Parameters

G	input PermutationGroup
h	input Permutation

Returns: conjugate PermutationGroup

Definition at line 381 of file permutation_group.h.

Here is the call graph for this function:

◆ intersect()

PermutationGroup TiledArray::symmetry::intersect	(	const PermutationGroup &	G1,
		const PermutationGroup &	G2
	)

inline

Computes intersect of 2 PermutationGroups

Note: The intersect is guaranteed to be a subgroup for both groups, hence this is the largest common subgroup.

Parameters

G1	PermutationGroup
G2	PermutationGroup

Returns: PermutationGroup

Definition at line 395 of file permutation_group.h.

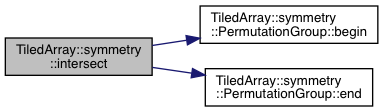

Here is the call graph for this function:

◆ is_lexicographically_smallest()

template<typename MultiIndex >

bool TiledArray::symmetry::is_lexicographically_smallest	(	const MultiIndex &	idx,
		const PermutationGroup &	pg
	)

determines whether a given MultiIndex is lexicographically smallest among all indices generated by the action of pg.

Template Parameters

MultiIndex a sequence type that is directly addressable, i.e. has a fast operator[]

Parameters

idx	an Index object
pg	the PermutationGroup

Returns: false if action of a permutation in pg can produce an Index that is lexicographically smaller than idx (i.e. there exists i such that pg[i]*idx is lexicographically less than idx), true otherwise

Definition at line 353 of file permutation_group.h.

◆ operator!=() [1/2]

bool TiledArray::symmetry::operator!=	(	const PermutationGroup &	p1,
		const PermutationGroup &	p2
	)

inline

PermutationGroup inequality operator.

Parameters

p1	The left-hand permutation group to be compared
p2	The right-hand permutation group to be compared

Returns: true if any element of p1 is not equal to that of p2, otherwise false.

Definition at line 225 of file permutation_group.h.

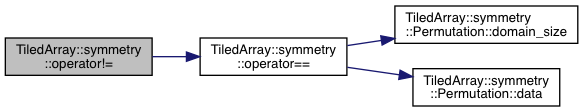

Here is the call graph for this function:

◆ operator!=() [2/2]

bool TiledArray::operator!=	(	const Permutation &	p1,
		const Permutation &	p2
	)

inline

Permutation inequality operator.

Parameters

p1	The left-hand permutation to be compared
p2	The right-hand permutation to be compared

Returns: true if any element of p1 is not equal to that of p2, otherwise false.

Definition at line 406 of file permutation.h.

Here is the call graph for this function:

◆ operator*()

Permutation TiledArray::operator*	(	const Permutation &	p1,
		const Permutation &	p2
	)

inline

Permutation multiplication operator.

Parameters

p1	The left-hand permutation
p2	The right-hand permutation

Returns: The product of p1 and p2 (which is the permutation of p2 by p1).

Definition at line 450 of file permutation.h.

Here is the call graph for this function:

◆ operator*=()

Permutation& TiledArray::operator*=	(	Permutation &	p1,
		const Permutation &	p2
	)

inline

return *this ^ other

Definition at line 456 of file permutation.h.

◆ operator-()

Permutation TiledArray::operator- ( const Permutation & perm )

inline

Inverse permutation operator.

Parameters

perm	The permutation to be inverted

Returns: perm.inverse()

Definition at line 440 of file permutation.h.

Here is the call graph for this function:

◆ operator<() [1/2]

bool TiledArray::symmetry::operator<	(	const PermutationGroup &	p1,
		const PermutationGroup &	p2
	)

inline

PermutationGroup less-than operator.

Parameters

p1	The left-hand permutation group to be compared
p2	The right-hand permutation group to be compared

Returns: true if the elements of p1 are lexicographically less than that of p2, otherwise false.

Definition at line 235 of file permutation_group.h.

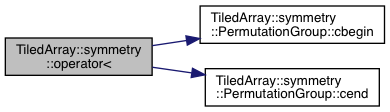

Here is the call graph for this function:

◆ operator<() [2/2]

bool TiledArray::operator<	(	const Permutation &	p1,
		const Permutation &	p2
	)

inline

Permutation less-than operator.

Parameters

p1	The left-hand permutation to be compared
p2	The right-hand permutation to be compared

Returns: true if the elements of p1 are lexicographically less than that of p2, otherwise false.

Definition at line 416 of file permutation.h.

Here is the call graph for this function:

◆ operator<<() [1/2]

std::ostream & TiledArray::operator<<	(	std::ostream &	output,
		const Permutation &	p
	)

inline

Add permutation to an output stream.

Parameters

[out]	output	The output stream
[in]	p	The permutation to be added to the output stream

Returns: The output stream

Definition at line 426 of file permutation.h.

Here is the call graph for this function:

◆ operator<<() [2/2]

std::ostream& TiledArray::symmetry::operator<<	(	std::ostream &	output,
		const PermutationGroup &	p
	)

inline

Add permutation group to an output stream.

Parameters

[out]	output	The output stream
[in]	p	The permutation group to be added to the output stream

Returns: The output stream

Definition at line 245 of file permutation_group.h.

Here is the call graph for this function:

◆ operator==() [1/2]

bool TiledArray::operator==	(	const Permutation &	p1,
		const Permutation &	p2
	)

inline

Permutation equality operator.

Parameters

p1	The left-hand permutation to be compared
p2	The right-hand permutation to be compared

Returns: true if all elements of p1 and p2 are equal and in the same order, otherwise false.

Definition at line 395 of file permutation.h.

Here is the call graph for this function:

◆ operator==() [2/2]

bool TiledArray::symmetry::operator==	(	const PermutationGroup &	p1,
		const PermutationGroup &	p2
	)

inline

PermutationGroup equality operator.

Parameters

p1	The left-hand permutation group to be compared
p2	The right-hand permutation group to be compared

Returns: true if all elements of p1 and p2 are equal, otherwise false.

Definition at line 214 of file permutation_group.h.

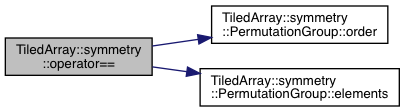

Here is the call graph for this function:

◆ operator^()

Permutation TiledArray::operator^	(	const Permutation &	perm,
		int	n
	)

inline

Raise perm to the n-th power.

Constructs the permutation $ P^n $ , where $ P $ is the permutation perm.

Parameters

perm	The base permutation
n	Exponent value

Returns: This permutation raised to the n-th power

Definition at line 467 of file permutation.h.

Here is the call graph for this function:

◆ stabilizer()

template<typename Set >

PermutationGroup TiledArray::symmetry::stabilizer	(	const PermutationGroup &	G,
		const Set &	f
	)

inline

Computes the largest subgroup of a permutation group that leaves the given set of indices fixed.

Template Parameters

Set	a set of indices

Parameters

G	input PermutationGroup
f	input Set

Returns: the fixed set subgroup of G

Definition at line 411 of file permutation_group.h.

Here is the call graph for this function:
