#include <conjgrad.h>

Public Types
typedef D::element_type	value_type

Public Member Functions
value_type	operator() (F &a, const D &b, D &x, const D &preconditioner, value_type convergence_target=-1.0)

Detailed Description

template<typename D, typename F>
struct TiledArray::ConjugateGradientSolver< D, F >

Solves linear system a(x) = b using conjugate gradient solver where a is a linear function of x .

Template Parameters

D type of x and b, as well as the preconditioner;

F

type that evaluates the LHS, will call F::operator()(x,result) , D must implement operator()(const D&, D&) const D::element_type must be defined and D must provide the following stand-alone functions:

std::size_t size(const D&)
D clone(const D&)
D copy(const D&)
value_type minabs_value(const D&)
value_type maxabs_value(const D&)
void vec_multiply(D& a, const D& b) (element-wise multiply of a by b )
value_type dot_product(const D& a, const D& b)
void scale(D&, value_type)
void axpy(D& y, value_type a, const D& x)
void assign(D&, const D&)
double norm2(const D&)

Definition at line 56 of file conjgrad.h.

Member Typedef Documentation

◆ value_type

template<typename D , typename F >

typedef D::element_type TiledArray::ConjugateGradientSolver< D, F >::value_type

Definition at line 57 of file conjgrad.h.

Member Function Documentation

◆ operator()()

template<typename D , typename F >

value_type TiledArray::ConjugateGradientSolver< D, F >::operator()	(	F &	a,
		const D &	b,
		D &	x,
		const D &	preconditioner,
		value_type	convergence_target = `-1.0`
	)

inline

Parameters

a	object of type F
b	RHS
x	unknown
preconditioner
convergence_target	The convergence target [default = -1.0]

Returns: The 2-norm of the residual, a(x) - b, divided by the number of elements in the residual.

Definition at line 66 of file conjgrad.h.

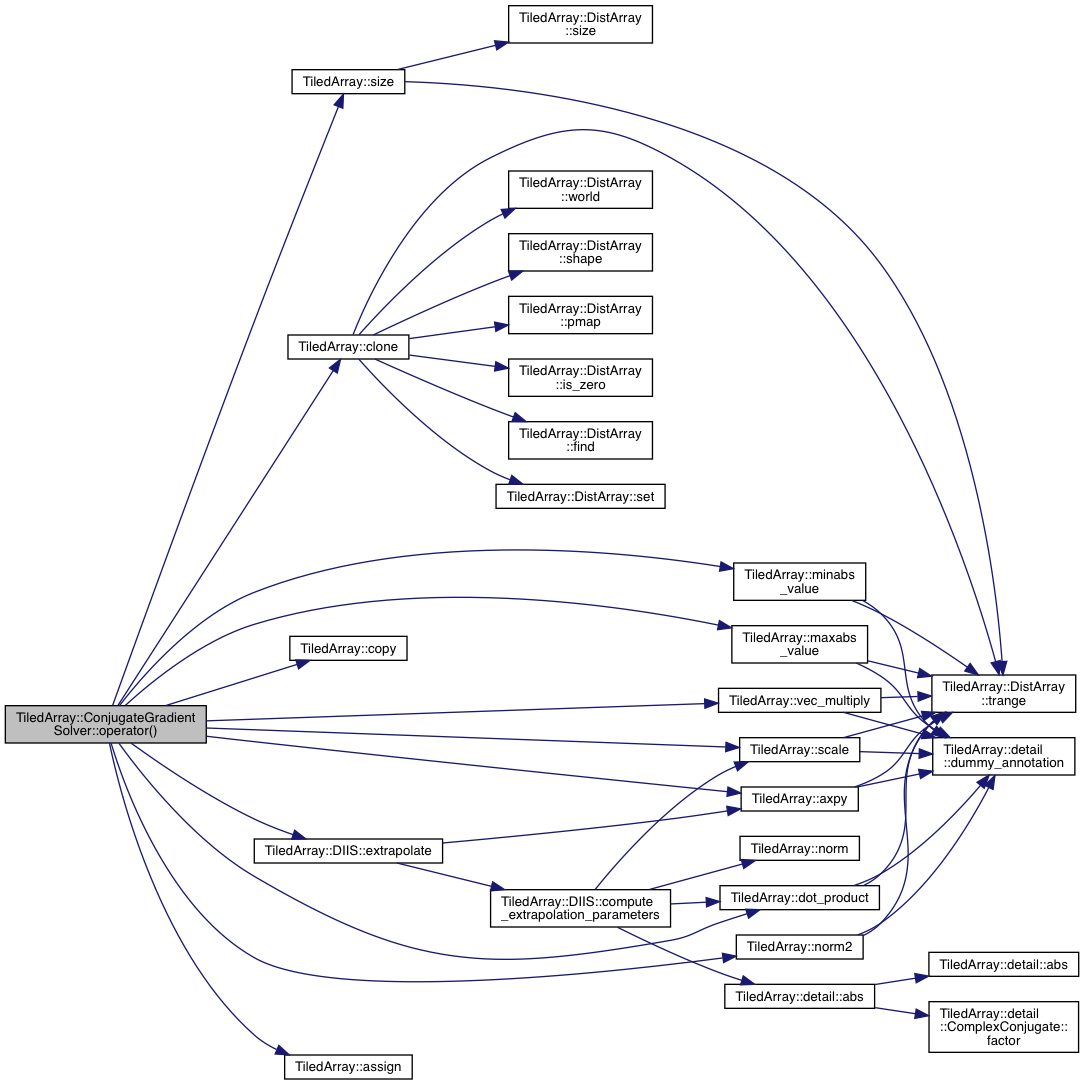

Here is the call graph for this function:

The documentation for this struct was generated from the following file:

TiledArray/algebra/conjgrad.h
