TiledArray::Pmap Class Reference

Process map. More...

#include <pmap.h>

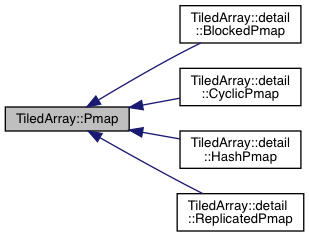

Inheritance diagram for TiledArray::Pmap:

Collaboration diagram for TiledArray::Pmap:

Public Types
typedef std::size_t	size_type
	Size type. More...
typedef std::vector< size_type >::const_iterator	const_iterator
	Iterator type. More...

Public Member Functions
	Pmap (World &world, const size_type size)
	Process map constructor. More...
virtual	~Pmap ()
virtual size_type	owner (const size_type tile) const =0
	Maps tile to the processor that owns it. More...
virtual bool	is_local (const size_type tile) const =0
	Check that the tile is owned by this process. More...
size_type	size () const
	Size accessor. More...
size_type	rank () const
	Process rank accessor. More...
size_type	procs () const
	Process count accessor. More...
size_type	local_size () const
	Local size accessor. More...
bool	empty () const
	Check if there are any local elements. More...
virtual bool	is_replicated () const
	Replicated array status. More...
const_iterator	begin () const
	Begin local element iterator. More...
const_iterator	end () const
	End local element iterator. More...

Protected Attributes
const size_type	rank_
	The rank of this process. More...
const size_type	procs_
	The number of processes. More...
const size_type	size_
	The number of tiles mapped among all processes. More...
std::vector< size_type >	local_
	A list of local tiles. More...

Detailed Description

Process map.

This is the base and interface class for other process maps. It provides access to the local tile iterator and basic process map information. Derived classes are responsible for distribution of tiles. The general idea of process map objects is to compute process owners with an O(1) algorithm to provide fast access to tile owner information and avoid storage of process map. A cache a list of local tiles is stored so that algorithms that need to iterate over local tiles can do so without computing the owner of all tiles. The algorithm to generate the cached list of local tiles and the memory requirement should scale as O(tiles/processes), if possible.

Definition at line 46 of file pmap.h.

Member Typedef Documentation

const_iterator

typedef std::vector<size_type>::const_iterator TiledArray::Pmap::const_iterator

Iterator type.

Definition at line 49 of file pmap.h.

size_type

typedef std::size_t TiledArray::Pmap::size_type

Size type.

Definition at line 48 of file pmap.h.

Constructor & Destructor Documentation

Pmap()

TiledArray::Pmap::Pmap ( World &  world, const size_type  size  )

inline

Process map constructor.

Parameters

world	The world where the tiles will be mapped
size	The number of processes to be mapped

Definition at line 68 of file pmap.h.

~Pmap()

virtual TiledArray::Pmap::~Pmap ( )

inlinevirtual

Definition at line 74 of file pmap.h.

Member Function Documentation

begin()

const_iterator TiledArray::Pmap::begin ( ) const

inline

Begin local element iterator.

Returns

An iterator that points to the beginning of the local element set

Definition at line 121 of file pmap.h.

empty()

bool TiledArray::Pmap::empty ( ) const

inline

Check if there are any local elements.

Returns

true when there are no local tiles, otherwise false .

Definition at line 111 of file pmap.h.

end()

const_iterator TiledArray::Pmap::end ( ) const

inline

End local element iterator.

Returns

An iterator that points to the beginning of the local element set

Definition at line 126 of file pmap.h.

is_local()

virtual bool TiledArray::Pmap::is_local ( const size_type  tile ) const

pure virtual

Check that the tile is owned by this process.

Parameters

tile	The tile to be checked

Returns

true if tile is owned by this process, otherwise false .

Implemented in TiledArray::detail::CyclicPmap, TiledArray::detail::BlockedPmap, TiledArray::detail::HashPmap, and TiledArray::detail::ReplicatedPmap.

is_replicated()

virtual bool TiledArray::Pmap::is_replicated ( ) const

inlinevirtual

Replicated array status.

Returns

true if the array is replicated, and false otherwise

Reimplemented in TiledArray::detail::ReplicatedPmap.

Definition at line 116 of file pmap.h.

local_size()

size_type TiledArray::Pmap::local_size ( ) const

inline

Local size accessor.

Returns

The number of local elements

Definition at line 106 of file pmap.h.

owner()

virtual size_type TiledArray::Pmap::owner ( const size_type  tile ) const

pure virtual

Maps tile to the processor that owns it.

Parameters

tile	The tile to be queried

Returns

Processor that logically owns tile

Implemented in TiledArray::detail::CyclicPmap, TiledArray::detail::BlockedPmap, TiledArray::detail::HashPmap, and TiledArray::detail::ReplicatedPmap.

procs()

size_type TiledArray::Pmap::procs ( ) const

inline

Process count accessor.

Returns

The number of processes

Definition at line 101 of file pmap.h.

rank()

size_type TiledArray::Pmap::rank ( ) const

inline

Process rank accessor.

Returns

The rank of this process

Definition at line 96 of file pmap.h.

size()

size_type TiledArray::Pmap::size ( ) const

inline

Size accessor.

Returns

The number of elements

Definition at line 91 of file pmap.h.

Member Data Documentation

local_

std::vector<size_type> TiledArray::Pmap::local_

protected

A list of local tiles.

Definition at line 55 of file pmap.h.

procs_

const size_type TiledArray::Pmap::procs_

protected

The number of processes.

Definition at line 53 of file pmap.h.

rank_

const size_type TiledArray::Pmap::rank_

protected

The rank of this process.

Definition at line 52 of file pmap.h.

size_

const size_type TiledArray::Pmap::size_

protected

The number of tiles mapped among all processes.

Definition at line 54 of file pmap.h.

---

The documentation for this class was generated from the following file:

• TiledArray/pmap/pmap.h
