Maps cyclically a sequence of indices onto a 2-d matrix of processes. More...

#include <cyclic_pmap.h>

Inheritance diagram for TiledArray::detail::CyclicPmap:

Collaboration diagram for TiledArray::detail::CyclicPmap:

Public Types
typedef Pmap::size_type	size_type
	Size type. More...

Public Types inherited from TiledArray::Pmap
typedef std::size_t	size_type
	Size type. More...

typedef std::vector< size_type >::const_iterator	const_iterator
	Iterator type. More...

Public Member Functions
	CyclicPmap (World &world, size_type rows, size_type cols, size_type proc_rows, size_type proc_cols)
	Construct process map. More...

virtual	~CyclicPmap ()

size_type	nrows () const
	Access number of rows in the tile index matrix. More...

size_type	ncols () const
	Access number of columns in the tile index matrix. More...

size_type	nrows_proc () const
	Access number of rows in the process matrix. More...

size_type	ncols_proc () const
	Access number of columns in the process matrix. More...

virtual size_type	owner (const size_type tile) const
	Maps `tile` to the processor that owns it. More...

virtual bool	is_local (const size_type tile) const
	Check that the tile is owned by this process. More...

Public Member Functions inherited from TiledArray::Pmap
	Pmap (World &world, const size_type size)
	Process map constructor. More...

virtual	~Pmap ()

size_type	size () const
	Size accessor. More...

size_type	rank () const
	Process rank accessor. More...

size_type	procs () const
	Process count accessor. More...

size_type	local_size () const
	Local size accessor. More...

bool	empty () const
	Check if there are any local elements. More...

virtual bool	is_replicated () const
	Replicated array status. More...

const_iterator	begin () const
	Begin local element iterator. More...

const_iterator	end () const
	End local element iterator. More...

Protected Attributes
const size_type	rank_
	The rank of this process. More...

const size_type	procs_
	< The rank of this process More...

const size_type	size_
	< The number of processes More...

std::vector< size_type >	local_
	< The number of tiles mapped among all processes More...

Protected Attributes inherited from TiledArray::Pmap
const size_type	rank_
	The rank of this process. More...

const size_type	procs_
	The number of processes. More...

const size_type	size_
	The number of tiles mapped among all processes. More...

std::vector< size_type >	local_
	A list of local tiles. More...

Detailed Description

Maps cyclically a sequence of indices onto a 2-d matrix of processes.

Consider a sequence of indices $\{ k | k \in [0,N) \}$ , organized into a matrix, $\{ \{i,j\} | i \in [0,N_{\rm row}),j\in[0,N_{\rm col})\}$ , in row-major form, i.e. index $ k $ corresponds to $\{ k_{\rm row}, k_{\rm col} \} \equiv \{ k / N_{\rm col}, k \% N_{\rm col} \}$ . Similarly, a sequence of processes is organized into a matrix with $P_{\rm row}$ rows and $P_{\rm cols}$ columns, i.e process $p \equiv \{ p_{\rm row}, p_{\rm col} \}$ . Then index $\{ k_{\rm row}, k_{\rm col} \}$ maps to process $\{ p_{\rm row}, p_{\rm col} \} = \{ k_{\rm row} \% N_{\rm row}, k_{\rm col} \% N_{\rm col} \}$

Note: This class is used to map tile indices to processes.

Definition at line 46 of file cyclic_pmap.h.

Member Typedef Documentation

◆ size_type

typedef Pmap::size_type TiledArray::detail::CyclicPmap::size_type

Size type.

Definition at line 63 of file cyclic_pmap.h.

Constructor & Destructor Documentation

◆ CyclicPmap()

TiledArray::detail::CyclicPmap::CyclicPmap	(	World &	world,
		size_type	rows,
		size_type	cols,
		size_type	proc_rows,
		size_type	proc_cols
	)

inline

Construct process map.

Parameters

world	The world where the tiles will be mapped
rows	The number of tile rows to be mapped
cols	The number of tile columns to be mapped
proc_rows	The number of process rows in the map
proc_cols	The number of process columns in the map

Exceptions

TiledArray::Exception	When `proc_rows > rows`
TiledArray::Exception	When `proc_cols > cols`
TiledArray::Exception	When `proc_rows * proc_cols > world.size()`

Definition at line 75 of file cyclic_pmap.h.

Here is the call graph for this function:

◆ ~CyclicPmap()

virtual TiledArray::detail::CyclicPmap::~CyclicPmap ( )

inlinevirtual

Definition at line 114 of file cyclic_pmap.h.

Member Function Documentation

◆ is_local()

virtual bool TiledArray::detail::CyclicPmap::is_local ( const size_type tile ) const

inlinevirtual

Check that the tile is owned by this process.

Parameters

tile	The tile to be checked

Returns: true if tile is owned by this process, otherwise false .

Implements TiledArray::Pmap.

Definition at line 150 of file cyclic_pmap.h.

Here is the call graph for this function:

◆ ncols()

size_type TiledArray::detail::CyclicPmap::ncols ( ) const

inline

Access number of columns in the tile index matrix.

Definition at line 119 of file cyclic_pmap.h.

◆ ncols_proc()

size_type TiledArray::detail::CyclicPmap::ncols_proc ( ) const

inline

Access number of columns in the process matrix.

Definition at line 123 of file cyclic_pmap.h.

◆ nrows()

size_type TiledArray::detail::CyclicPmap::nrows ( ) const

inline

Access number of rows in the tile index matrix.

Definition at line 117 of file cyclic_pmap.h.

◆ nrows_proc()

size_type TiledArray::detail::CyclicPmap::nrows_proc ( ) const

inline

Access number of rows in the process matrix.

Definition at line 121 of file cyclic_pmap.h.

◆ owner()

virtual size_type TiledArray::detail::CyclicPmap::owner ( const size_type tile ) const

inlinevirtual

Maps tile to the processor that owns it.

Parameters

tile	The tile to be queried

Returns: Processor that logically owns tile

Implements TiledArray::Pmap.

Definition at line 129 of file cyclic_pmap.h.

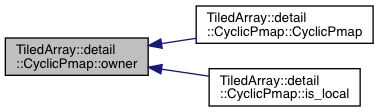

Here is the caller graph for this function:

Member Data Documentation

◆ local_

std::vector<size_type> TiledArray::Pmap::local_

protected

< The number of tiles mapped among all processes

Definition at line 55 of file pmap.h.

◆ procs_

const size_type TiledArray::Pmap::procs_

protected

< The rank of this process

Definition at line 53 of file pmap.h.

◆ rank_

const size_type TiledArray::Pmap::rank_

protected

The rank of this process.

Definition at line 52 of file pmap.h.

◆ size_

const size_type TiledArray::Pmap::size_

protected

< The number of processes

Definition at line 54 of file pmap.h.

The documentation for this class was generated from the following file:

TiledArray/pmap/cyclic_pmap.h
