Expression engine. More...

#include <expr_engine.h>

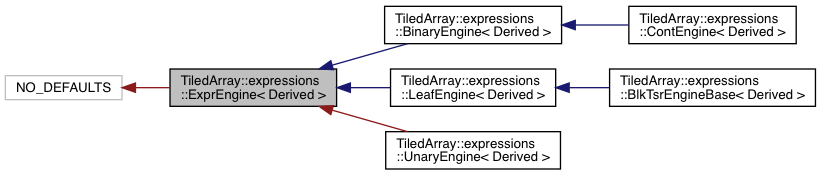

Inheritance diagram for TiledArray::expressions::ExprEngine< Derived >:

[legend]

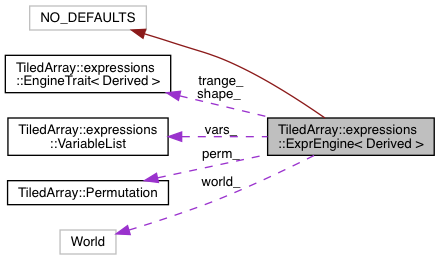

Collaboration diagram for TiledArray::expressions::ExprEngine< Derived >:

Public Types
typedef ExprEngine< Derived >	ExprEngine_

typedef Derived	derived_type
	The derived object type. More...

typedef EngineTrait< Derived >::value_type	value_type
	Tensor value type. More...

typedef EngineTrait< Derived >::op_type	op_type
	Tile operation type. More...

typedef EngineTrait< Derived >::policy	policy
	The result policy type. More...

typedef EngineTrait< Derived >::dist_eval_type	dist_eval_type
	This expression's distributed evaluator type. More...

typedef EngineTrait< Derived >::size_type	size_type
	Size type. More...

typedef EngineTrait< Derived >::trange_type	trange_type
	Tiled range type type. More...

typedef EngineTrait< Derived >::shape_type	shape_type
	Tensor shape type. More...

typedef EngineTrait< Derived >::pmap_interface	pmap_interface
	Process map interface type. More...

Public Member Functions
template<typename D >
	ExprEngine (const Expr< D > &expr)
	Default constructor. More...

void	init (World &world, std::shared_ptr< pmap_interface > pmap, const VariableList &target_vars)
	Construct and initialize the expression engine. More...

void	init_struct (const VariableList &target_vars)
	Initialize result tensor structure. More...

void	init_distribution (World *world, const std::shared_ptr< pmap_interface > &pmap)
	Initialize result tensor distribution. More...

Permutation	make_perm (const VariableList &target_vars) const
	Permutation factory function. More...

op_type	make_op () const
	Tile operation factory function. More...

derived_type &	derived ()
	Cast this object to it's derived type. More...

const derived_type &	derived () const
	Cast this object to it's derived type. More...

World *	world () const
	World accessor. More...

const VariableList &	vars () const
	Variable list accessor. More...

const Permutation &	perm () const
	Permutation accessor. More...

const trange_type &	trange () const
	Tiled range accessor. More...

const shape_type &	shape () const
	Shape accessor. More...

const std::shared_ptr< pmap_interface > &	pmap () const
	Process map accessor. More...

void	permute_tiles (const bool status)
	Set the permute tiles flag. More...

void	print (ExprOStream &os, const VariableList &target_vars) const
	Expression print. More...

const char *	make_tag () const
	Expression identification tag. More...

Protected Attributes
World *	world_
	The world where this expression will be evaluated. More...

VariableList	vars_
	The variable list of this expression. More...

bool	permute_tiles_
	Result tile permutation flag (`true` == permute tile) More...

Permutation	perm_
	The permutation that will be applied to the result. More...

trange_type	trange_
	The tiled range of the result tensor. More...

shape_type	shape_
	The shape of the result tensor. More...

std::shared_ptr< pmap_interface >	pmap_
	The process map for the result tensor. More...

std::shared_ptr< EngineParamOverride< Derived > >	override_ptr_
	The engine params overriding the default. More...

Detailed Description

template<typename Derived>
class TiledArray::expressions::ExprEngine< Derived >

Expression engine.

Definition at line 42 of file expr_engine.h.

Member Typedef Documentation

◆ derived_type

template<typename Derived>

typedef Derived TiledArray::expressions::ExprEngine< Derived >::derived_type

The derived object type.

Definition at line 45 of file expr_engine.h.

◆ dist_eval_type

template<typename Derived>

typedef EngineTrait<Derived>::dist_eval_type TiledArray::expressions::ExprEngine< Derived >::dist_eval_type

This expression's distributed evaluator type.

Definition at line 51 of file expr_engine.h.

◆ ExprEngine_

template<typename Derived>

typedef ExprEngine<Derived> TiledArray::expressions::ExprEngine< Derived >::ExprEngine_

Definition at line 44 of file expr_engine.h.

◆ op_type

template<typename Derived>

typedef EngineTrait<Derived>::op_type TiledArray::expressions::ExprEngine< Derived >::op_type

Tile operation type.

Definition at line 49 of file expr_engine.h.

◆ pmap_interface

template<typename Derived>

typedef EngineTrait<Derived>::pmap_interface TiledArray::expressions::ExprEngine< Derived >::pmap_interface

Process map interface type.

Definition at line 57 of file expr_engine.h.

◆ policy

template<typename Derived>

typedef EngineTrait<Derived>::policy TiledArray::expressions::ExprEngine< Derived >::policy

The result policy type.

Definition at line 50 of file expr_engine.h.

◆ shape_type

template<typename Derived>

typedef EngineTrait<Derived>::shape_type TiledArray::expressions::ExprEngine< Derived >::shape_type

Tensor shape type.

Definition at line 56 of file expr_engine.h.

◆ size_type

template<typename Derived>

typedef EngineTrait<Derived>::size_type TiledArray::expressions::ExprEngine< Derived >::size_type

Size type.

Definition at line 54 of file expr_engine.h.

◆ trange_type

template<typename Derived>

typedef EngineTrait<Derived>::trange_type TiledArray::expressions::ExprEngine< Derived >::trange_type

Tiled range type type.

Definition at line 55 of file expr_engine.h.

◆ value_type

template<typename Derived>

typedef EngineTrait<Derived>::value_type TiledArray::expressions::ExprEngine< Derived >::value_type

Tensor value type.

Definition at line 48 of file expr_engine.h.

Constructor & Destructor Documentation

◆ ExprEngine()

template<typename Derived>

template<typename D >

TiledArray::expressions::ExprEngine< Derived >::ExprEngine ( const Expr< D > & expr )

inline

Default constructor.

All data members are initialized to NULL values.

Definition at line 78 of file expr_engine.h.

Member Function Documentation

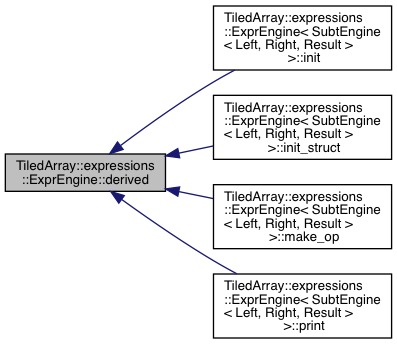

◆ derived() [1/2]

template<typename Derived>

derived_type& TiledArray::expressions::ExprEngine< Derived >::derived ( )

inline

Cast this object to it's derived type.

Definition at line 186 of file expr_engine.h.

Here is the caller graph for this function:

◆ derived() [2/2]

template<typename Derived>

const derived_type& TiledArray::expressions::ExprEngine< Derived >::derived ( ) const

inline

Cast this object to it's derived type.

Definition at line 189 of file expr_engine.h.

◆ init()

template<typename Derived>

void TiledArray::expressions::ExprEngine< Derived >::init	(	World &	world,
		std::shared_ptr< pmap_interface >	pmap,
		const VariableList &	target_vars
	)

inline

Construct and initialize the expression engine.

This function will initialize all expression engines in the expression graph. The init_vars(), init_struct(), and init_distribution() will be called for each node and leaf of the graph in that order.

Parameters

world	The world where the expression will be evaluated
pmap	The process map for the result tensor (may be NULL)
target_vars	The target variable list of the result tensor

Definition at line 92 of file expr_engine.h.

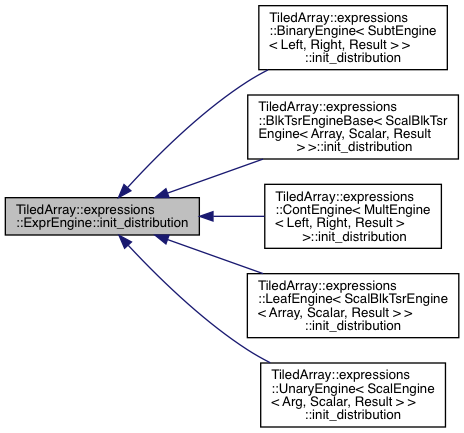

◆ init_distribution()

template<typename Derived>

void TiledArray::expressions::ExprEngine< Derived >::init_distribution	(	World *	world,
		const std::shared_ptr< pmap_interface > &	pmap
	)

inline

Initialize result tensor distribution.

This function will initialize the world and process map for the result tensor. Derived classes may customize this function by providing their own implementation it.

Parameters

world	The world were the result will be distributed
pmap	The process map for the result tensor tiles

Definition at line 151 of file expr_engine.h.

Here is the caller graph for this function:

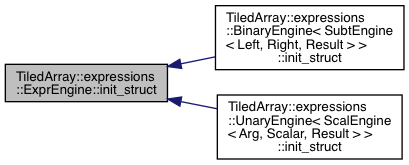

◆ init_struct()

template<typename Derived>

void TiledArray::expressions::ExprEngine< Derived >::init_struct ( const VariableList & target_vars )

inline

Initialize result tensor structure.

This function will initialize the permutation, tiled range, and shape for the result tensor. These members are initialized with the make_perm(), make_trange(), and make_shape() functions. Derived classes may customize the structure initialization by providing their own implementation of this function or any of the above initialization. functions.

Parameters

target_vars The target variable list for the result tensor

Definition at line 130 of file expr_engine.h.

Here is the caller graph for this function:

◆ make_op()

template<typename Derived>

op_type TiledArray::expressions::ExprEngine< Derived >::make_op ( ) const

inline

Tile operation factory function.

This function will generate the tile operations by calling make_tile_op(). The permuting or non-permuting version of the tile operation will be selected based on permute_tiles(). Derived classes may customize this function by providing their own implementation it.

Definition at line 178 of file expr_engine.h.

Here is the caller graph for this function:

◆ make_perm()

template<typename Derived>

Permutation TiledArray::expressions::ExprEngine< Derived >::make_perm ( const VariableList & target_vars ) const

inline

Permutation factory function.

This function will generate the permutation that will be applied to the result tensor. Derived classes may customize this function by providing their own implementation it.

Definition at line 168 of file expr_engine.h.

Here is the caller graph for this function:

◆ make_tag()

template<typename Derived>

const char* TiledArray::expressions::ExprEngine< Derived >::make_tag ( ) const

inline

Expression identification tag.

Returns: An expression tag used to identify this expression

Definition at line 242 of file expr_engine.h.

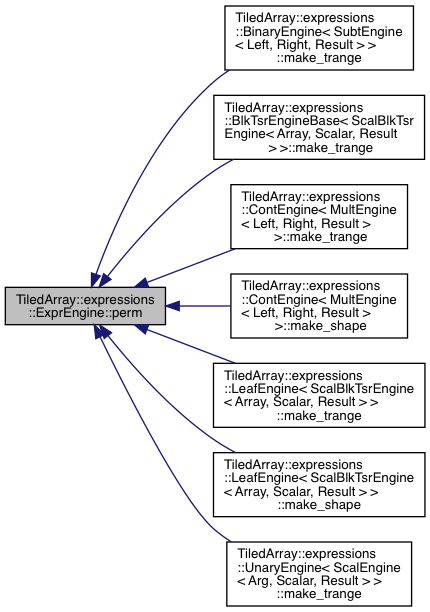

◆ perm()

template<typename Derived>

const Permutation& TiledArray::expressions::ExprEngine< Derived >::perm ( ) const

inline

Permutation accessor.

Returns: A const reference to the permutation

Definition at line 204 of file expr_engine.h.

Here is the caller graph for this function:

◆ permute_tiles()

template<typename Derived>

void TiledArray::expressions::ExprEngine< Derived >::permute_tiles ( const bool status )

inline

Set the permute tiles flag.

Parameters

status The new status for permute tiles (true == permtue result tiles)

Definition at line 224 of file expr_engine.h.

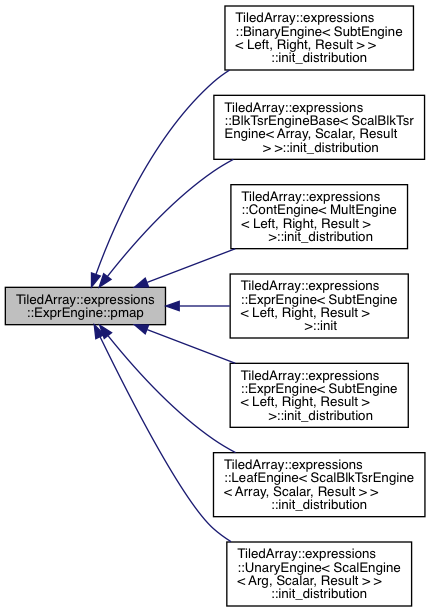

◆ pmap()

template<typename Derived>

const std::shared_ptr<pmap_interface>& TiledArray::expressions::ExprEngine< Derived >::pmap ( ) const

inline

Process map accessor.

Returns: A const reference to the process map

Definition at line 219 of file expr_engine.h.

Here is the caller graph for this function:

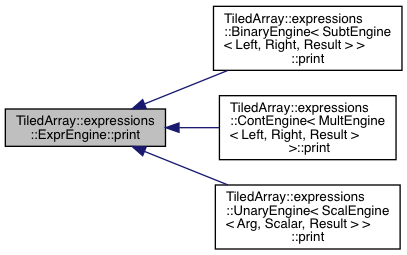

◆ print()

template<typename Derived>

void TiledArray::expressions::ExprEngine< Derived >::print	(	ExprOStream &	os,
		const VariableList &	target_vars
	)		const

inline

Expression print.

Parameters

os	The output stream
target_vars	The target variable list for this expression

Definition at line 230 of file expr_engine.h.

Here is the caller graph for this function:

◆ shape()

template<typename Derived>

const shape_type& TiledArray::expressions::ExprEngine< Derived >::shape ( ) const

inline

Shape accessor.

Returns: A const reference to the tiled range

Definition at line 214 of file expr_engine.h.

Here is the caller graph for this function:

◆ trange()

template<typename Derived>

const trange_type& TiledArray::expressions::ExprEngine< Derived >::trange ( ) const

inline

Tiled range accessor.

Returns: A const reference to the tiled range

Definition at line 209 of file expr_engine.h.

Here is the caller graph for this function:

◆ vars()

template<typename Derived>

const VariableList& TiledArray::expressions::ExprEngine< Derived >::vars ( ) const

inline

Variable list accessor.

Returns: A const reference to the variable list

Definition at line 199 of file expr_engine.h.

Here is the caller graph for this function:

◆ world()

template<typename Derived>

World* TiledArray::expressions::ExprEngine< Derived >::world ( ) const

inline

World accessor.

Returns: A pointer to world

Definition at line 194 of file expr_engine.h.

Here is the caller graph for this function:

Member Data Documentation

◆ override_ptr_

template<typename Derived>

std::shared_ptr<EngineParamOverride<Derived> > TiledArray::expressions::ExprEngine< Derived >::override_ptr_

protected

The engine params overriding the default.

Definition at line 70 of file expr_engine.h.

◆ perm_

template<typename Derived>

Permutation TiledArray::expressions::ExprEngine< Derived >::perm_

protected

The permutation that will be applied to the result.

Definition at line 66 of file expr_engine.h.

◆ permute_tiles_

template<typename Derived>

bool TiledArray::expressions::ExprEngine< Derived >::permute_tiles_

protected

Result tile permutation flag (true == permute tile)

Definition at line 65 of file expr_engine.h.

◆ pmap_

template<typename Derived>

std::shared_ptr<pmap_interface> TiledArray::expressions::ExprEngine< Derived >::pmap_

protected

The process map for the result tensor.

Definition at line 69 of file expr_engine.h.

◆ shape_

template<typename Derived>

shape_type TiledArray::expressions::ExprEngine< Derived >::shape_

protected

The shape of the result tensor.

Definition at line 68 of file expr_engine.h.

◆ trange_

template<typename Derived>

trange_type TiledArray::expressions::ExprEngine< Derived >::trange_

protected

The tiled range of the result tensor.

Definition at line 67 of file expr_engine.h.

◆ vars_

template<typename Derived>

VariableList TiledArray::expressions::ExprEngine< Derived >::vars_

protected

The variable list of this expression.

Definition at line 64 of file expr_engine.h.

◆ world_

template<typename Derived>

World* TiledArray::expressions::ExprEngine< Derived >::world_

protected

The world where this expression will be evaluated.

Definition at line 63 of file expr_engine.h.

The documentation for this class was generated from the following file:

TiledArray/expressions/expr_engine.h

Public Types

Public Member Functions

Protected Attributes

Detailed Description

template<typename Derived> class TiledArray::expressions::ExprEngine< Derived >

Member Typedef Documentation

◆ derived_type

◆ dist_eval_type

◆ ExprEngine_

◆ op_type

◆ pmap_interface

◆ policy

◆ shape_type

◆ size_type

◆ trange_type

◆ value_type

Constructor & Destructor Documentation

◆ ExprEngine()

Member Function Documentation

◆ derived() [1/2]

◆ derived() [2/2]

◆ init()

◆ init_distribution()

◆ init_struct()

◆ make_op()

◆ make_perm()

◆ make_tag()

◆ perm()

◆ permute_tiles()

◆ pmap()

◆ print()

◆ shape()

◆ trange()

◆ vars()

◆ world()

Member Data Documentation

◆ override_ptr_

◆ perm_

◆ permute_tiles_

◆ pmap_

◆ shape_

◆ trange_

◆ vars_

◆ world_

template<typename Derived>
class TiledArray::expressions::ExprEngine< Derived >
