Expression wrapper for array objects. More...

#include <dist_array.h>

Inheritance diagram for TiledArray::expressions::TsrExpr< Array, Alias >:

Collaboration diagram for TiledArray::expressions::TsrExpr< Array, Alias >:

Public Types
typedef TsrExpr< Array, Alias >	TsrExpr_
	This class type. More...

typedef Expr< TsrExpr_ >	Expr_
	Base class type. More...

typedef ExprTrait< TsrExpr_ >::array_type	array_type
	The array type. More...

typedef ExprTrait< TsrExpr_ >::engine_type	engine_type
	Expression engine type. More...

Public Types inherited from TiledArray::expressions::Expr< TsrExpr< Array, Alias > >
using	engine_t = typename ExprTrait< Derived_ >::engine_type

using	eval_type_t = typename engine_t< Derived_ >::eval_type

typedef Expr< TsrExpr< Array, Alias > >	Expr_
	This class type. More...

typedef TsrExpr< Array, Alias >	derived_type
	The derived object type. More...

typedef engine_t< derived_type >	engine_type
	Expression engine type. More...

Public Member Functions
	TsrExpr ()=default

	TsrExpr (const TsrExpr_ &)=default

	TsrExpr (TsrExpr_ &&)=default

	~TsrExpr ()=default

	TsrExpr (array_type &array, const std::string &vars)
	Constructor. More...

array_type &	operator= (TsrExpr_ &other)
	Expression assignment operator. More...

template<typename D >
array_type &	operator= (const Expr< D > &other)
	Expression assignment operator. More...

template<typename D >
array_type &	operator+= (const Expr< D > &other)
	Expression plus-assignment operator. More...

template<typename D >
array_type &	operator-= (const Expr< D > &other)
	Expression minus-assignment operator. More...

template<typename D >
array_type &	operator*= (const Expr< D > &other)
	Expression multiply-assignment operator. More...

array_type &	array () const
	Array accessor. More...

TsrExpr< Array, false >	no_alias () const
	Flag this tensor expression for a non-aliasing assignment. More...

template<typename Index >
BlkTsrExpr< const Array, Alias >	block (const Index &lower_bound, const Index &upper_bound) const
	Block expression. More...

BlkTsrExpr< const Array, Alias >	block (const std::initializer_list< std::size_t > &lower_bound, const std::initializer_list< std::size_t > &upper_bound) const
	Block expression. More...

template<typename Index >
BlkTsrExpr< Array, Alias >	block (const Index &lower_bound, const Index &upper_bound)
	Block expression. More...

BlkTsrExpr< Array, Alias >	block (const std::initializer_list< std::size_t > &lower_bound, const std::initializer_list< std::size_t > &upper_bound)
	Block expression. More...

ConjTsrExpr< Array >	conj () const
	Conjugated-tensor expression factor. More...

const std::string &	vars () const
	Tensor variable string accessor. More...

Public Member Functions inherited from TiledArray::expressions::Expr< TsrExpr< Array, Alias > >
Expr< TsrExpr< Array, Alias > > &	set_shape (typename override_type::shape_type const &shape)

Expr< TsrExpr< Array, Alias > > &	set_world (World &world)

Expr< TsrExpr< Array, Alias > > &	set_pmap (const std::shared_ptr< typename override_type::pmap_interface > pmap)

	Expr ()=default

	Expr (const Expr_ &)=default

	Expr (Expr_ &&)=default

	~Expr ()=default

Expr_ &	operator= (const Expr_ &)=delete

Expr_ &	operator= (Expr_ &&)=delete

derived_type &	derived ()
	Cast this object to it's derived type. More...

const derived_type &	derived () const
	Cast this object to it's derived type. More...

void	eval_to (TsrExpr< A, Alias > &tsr) const
	Evaluate this object and assign it to `tsr`. More...

void	eval_to (BlkTsrExpr< A, Alias > &tsr) const
	Evaluate this object and assign it to `tsr`. More...

void	print (ExprOStream &os, const VariableList &target_vars) const
	Expression print. More...

Future< typename Op::result_type >	reduce (const Op &op, World &world) const

Future< typename Op::result_type >	reduce (const Op &op) const

Future< typename Op::result_type >	reduce (const Expr< D > &right_expr, const Op &op, World &world) const

Future< typename Op::result_type >	reduce (const Expr< D > &right_expr, const Op &op) const

Future< typename TiledArray::TraceReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	trace (World &world) const

Future< typename TiledArray::TraceReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	trace () const

Future< typename TiledArray::SumReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	sum (World &world) const

Future< typename TiledArray::SumReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	sum () const

Future< typename TiledArray::ProductReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	product (World &world) const

Future< typename TiledArray::ProductReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	product () const

Future< typename TiledArray::SquaredNormReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	squared_norm (World &world) const

Future< typename TiledArray::SquaredNormReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	squared_norm () const

Future< typename TiledArray::SquaredNormReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	norm (World &world) const

Future< typename TiledArray::SquaredNormReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	norm () const

std::enable_if< TiledArray::detail::is_strictly_ordered< TiledArray::detail::numeric_t< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type > >::value, Future< typename TiledArray::MinReduction< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type >::result_type > >	min (World &world) const

std::enable_if< TiledArray::detail::is_strictly_ordered< TiledArray::detail::numeric_t< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type > >::value, Future< typename TiledArray::MinReduction< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type >::result_type > >	min () const

std::enable_if< TiledArray::detail::is_strictly_ordered< TiledArray::detail::numeric_t< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type > >::value, Future< typename TiledArray::MaxReduction< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type >::result_type > >	max (World &world) const

std::enable_if< TiledArray::detail::is_strictly_ordered< TiledArray::detail::numeric_t< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type > >::value, Future< typename TiledArray::MaxReduction< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type >::result_type > >	max () const

Future< typename TiledArray::AbsMinReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	abs_min (World &world) const

Future< typename TiledArray::AbsMinReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	abs_min () const

Future< typename TiledArray::AbsMaxReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	abs_max (World &world) const

Future< typename TiledArray::AbsMaxReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	abs_max () const

Future< typename TiledArray::DotReduction< typename EngineTrait< engine_type >::eval_type, typename EngineTrait< typename D::engine_type >::eval_type >::result_type >	dot (const Expr< D > &right_expr, World &world) const

Future< typename TiledArray::DotReduction< typename EngineTrait< engine_type >::eval_type, typename EngineTrait< typename D::engine_type >::eval_type >::result_type >	dot (const Expr< D > &right_expr) const

Future< typename TiledArray::InnerProductReduction< typename EngineTrait< engine_type >::eval_type, typename EngineTrait< typename D::engine_type >::eval_type >::result_type >	inner_product (const Expr< D > &right_expr, World &world) const

Future< typename TiledArray::InnerProductReduction< typename EngineTrait< engine_type >::eval_type, typename EngineTrait< typename D::engine_type >::eval_type >::result_type >	inner_product (const Expr< D > &right_expr) const

Detailed Description

template<typename Array, bool Alias>
class TiledArray::expressions::TsrExpr< Array, Alias >

Expression wrapper for array objects.

Template Parameters

Array	The `TiledArray::Array` type
Alias	Indicates the array tiles should be computed as a temporary before assignment

Definition at line 39 of file dist_array.h.

Member Typedef Documentation

◆ array_type

template<typename Array, bool Alias>

typedef ExprTrait<TsrExpr_>::array_type TiledArray::expressions::TsrExpr< Array, Alias >::array_type

The array type.

Definition at line 88 of file tsr_expr.h.

◆ engine_type

template<typename Array, bool Alias>

typedef ExprTrait<TsrExpr_>::engine_type TiledArray::expressions::TsrExpr< Array, Alias >::engine_type

Expression engine type.

Definition at line 90 of file tsr_expr.h.

◆ Expr_

template<typename Array, bool Alias>

typedef Expr<TsrExpr_> TiledArray::expressions::TsrExpr< Array, Alias >::Expr_

Base class type.

Definition at line 86 of file tsr_expr.h.

◆ TsrExpr_

template<typename Array, bool Alias>

typedef TsrExpr<Array, Alias> TiledArray::expressions::TsrExpr< Array, Alias >::TsrExpr_

This class type.

Definition at line 85 of file tsr_expr.h.

Constructor & Destructor Documentation

◆ TsrExpr() [1/4]

template<typename Array, bool Alias>

TiledArray::expressions::TsrExpr< Array, Alias >::TsrExpr ( )

default

◆ TsrExpr() [2/4]

template<typename Array, bool Alias>

TiledArray::expressions::TsrExpr< Array, Alias >::TsrExpr ( const TsrExpr_ & )

default

◆ TsrExpr() [3/4]

template<typename Array, bool Alias>

TiledArray::expressions::TsrExpr< Array, Alias >::TsrExpr ( TsrExpr_ && )

default

◆ ~TsrExpr()

template<typename Array, bool Alias>

TiledArray::expressions::TsrExpr< Array, Alias >::~TsrExpr ( )

default

◆ TsrExpr() [4/4]

template<typename Array, bool Alias>

TiledArray::expressions::TsrExpr< Array, Alias >::TsrExpr	(	array_type &	array,
		const std::string &	vars
	)

inline

Constructor.

Parameters

array	The array object
vars	The variable list that is associated with this expression

Definition at line 109 of file tsr_expr.h.

Member Function Documentation

◆ array()

template<typename Array, bool Alias>

array_type& TiledArray::expressions::TsrExpr< Array, Alias >::array ( ) const

inline

Array accessor.

Returns: a const reference to this array

Definition at line 173 of file tsr_expr.h.

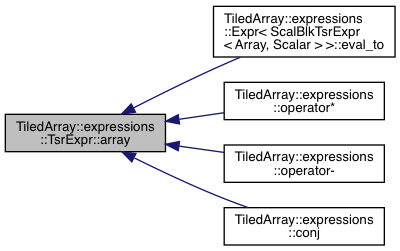

Here is the caller graph for this function:

◆ block() [1/4]

template<typename Array, bool Alias>

template<typename Index >

BlkTsrExpr<const Array, Alias> TiledArray::expressions::TsrExpr< Array, Alias >::block	(	const Index &	lower_bound,
		const Index &	upper_bound
	)		const

inline

Block expression.

Template Parameters

Index The bound index types

Parameters

lower_bound	The lower_bound of the block
upper_bound	The upper_bound of the block

Definition at line 190 of file tsr_expr.h.

◆ block() [2/4]

template<typename Array, bool Alias>

BlkTsrExpr<const Array, Alias> TiledArray::expressions::TsrExpr< Array, Alias >::block	(	const std::initializer_list< std::size_t > &	lower_bound,
		const std::initializer_list< std::size_t > &	upper_bound
	)		const

inline

Block expression.

Parameters

lower_bound	The lower_bound of the block
upper_bound	The upper_bound of the block

Definition at line 200 of file tsr_expr.h.

◆ block() [3/4]

template<typename Array, bool Alias>

template<typename Index >

BlkTsrExpr<Array, Alias> TiledArray::expressions::TsrExpr< Array, Alias >::block	(	const Index &	lower_bound,
		const Index &	upper_bound
	)

inline

Block expression.

Template Parameters

Index The bound index types

Parameters

lower_bound	The lower_bound of the block
upper_bound	The upper_bound of the block

Definition at line 213 of file tsr_expr.h.

◆ block() [4/4]

template<typename Array, bool Alias>

BlkTsrExpr<Array, Alias> TiledArray::expressions::TsrExpr< Array, Alias >::block	(	const std::initializer_list< std::size_t > &	lower_bound,
		const std::initializer_list< std::size_t > &	upper_bound
	)

inline

Block expression.

Parameters

lower_bound	The lower_bound of the block
upper_bound	The upper_bound of the block

Definition at line 223 of file tsr_expr.h.

◆ conj()

template<typename Array, bool Alias>

ConjTsrExpr<Array> TiledArray::expressions::TsrExpr< Array, Alias >::conj ( ) const

inline

Conjugated-tensor expression factor.

Returns: A conjugated expression object

Definition at line 232 of file tsr_expr.h.

Here is the call graph for this function:

◆ no_alias()

template<typename Array, bool Alias>

TsrExpr<Array, false> TiledArray::expressions::TsrExpr< Array, Alias >::no_alias ( ) const

inline

Flag this tensor expression for a non-aliasing assignment.

Returns: A non-aliased tensor expression

Definition at line 179 of file tsr_expr.h.

◆ operator*=()

template<typename Array, bool Alias>

template<typename D >

array_type& TiledArray::expressions::TsrExpr< Array, Alias >::operator*= ( const Expr< D > & other )

inline

Expression multiply-assignment operator.

Template Parameters

D	The derived expression type

Parameters

other The expression that will scale this array

Definition at line 163 of file tsr_expr.h.

Here is the call graph for this function:

◆ operator+=()

template<typename Array, bool Alias>

template<typename D >

array_type& TiledArray::expressions::TsrExpr< Array, Alias >::operator+= ( const Expr< D > & other )

inline

Expression plus-assignment operator.

Template Parameters

D	The derived expression type

Parameters

other The expression that will be added to this array

Definition at line 139 of file tsr_expr.h.

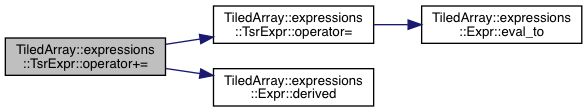

Here is the call graph for this function:

◆ operator-=()

template<typename Array, bool Alias>

template<typename D >

array_type& TiledArray::expressions::TsrExpr< Array, Alias >::operator-= ( const Expr< D > & other )

inline

Expression minus-assignment operator.

Template Parameters

D	The derived expression type

Parameters

other The expression that will be subtracted from this array

Definition at line 151 of file tsr_expr.h.

Here is the call graph for this function:

◆ operator=() [1/2]

template<typename Array, bool Alias>

array_type& TiledArray::expressions::TsrExpr< Array, Alias >::operator= ( TsrExpr_ & other )

inline

Expression assignment operator.

Parameters

other The expression that will be assigned to this array

Definition at line 116 of file tsr_expr.h.

Here is the call graph for this function:

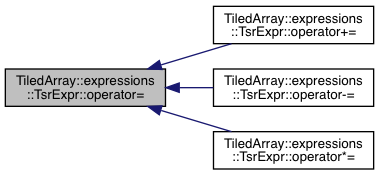

Here is the caller graph for this function:

◆ operator=() [2/2]

template<typename Array, bool Alias>

template<typename D >

array_type& TiledArray::expressions::TsrExpr< Array, Alias >::operator= ( const Expr< D > & other )

inline

Expression assignment operator.

Template Parameters

D	The derived expression type

Parameters

other The expression that will be assigned to this array

Definition at line 126 of file tsr_expr.h.

Here is the call graph for this function:

◆ vars()

template<typename Array, bool Alias>

const std::string& TiledArray::expressions::TsrExpr< Array, Alias >::vars ( ) const

inline

Tensor variable string accessor.

Returns: A const reference to the variable string for this tensor

Definition at line 239 of file tsr_expr.h.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

TiledArray/dist_array.h
TiledArray/expressions/tsr_expr.h

Public Types

Public Member Functions

Detailed Description

template<typename Array, bool Alias> class TiledArray::expressions::TsrExpr< Array, Alias >

Member Typedef Documentation

◆ array_type

◆ engine_type

◆ Expr_

◆ TsrExpr_

Constructor & Destructor Documentation

◆ TsrExpr() [1/4]

◆ TsrExpr() [2/4]

◆ TsrExpr() [3/4]

◆ ~TsrExpr()

◆ TsrExpr() [4/4]

Member Function Documentation

◆ array()

◆ block() [1/4]

◆ block() [2/4]

◆ block() [3/4]

◆ block() [4/4]

◆ conj()

◆ no_alias()

◆ operator*=()

◆ operator+=()

◆ operator-=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ vars()

template<typename Array, bool Alias>
class TiledArray::expressions::TsrExpr< Array, Alias >
