#include <unary_engine.h>

Inheritance diagram for TiledArray::expressions::UnaryEngine< Derived >:

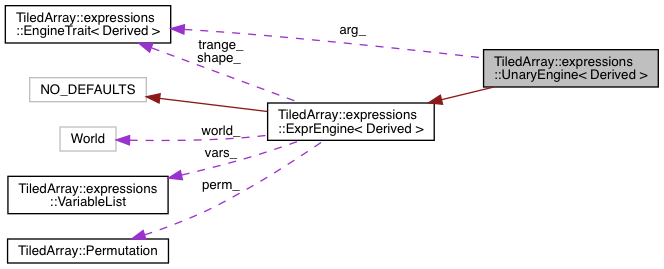

Collaboration diagram for TiledArray::expressions::UnaryEngine< Derived >:

[legend]

Public Types
typedef UnaryEngine< Derived >	UnaryEngine_
	This class type. More...

typedef ExprEngine< Derived >	ExprEngine_
	Base class type. More...

typedef EngineTrait< Derived >::argument_type	argument_type
	The argument expression engine type. More...

typedef EngineTrait< Derived >::value_type	value_type
	The result tile type. More...

typedef EngineTrait< Derived >::op_type	op_type
	The tile operation type. More...

typedef EngineTrait< Derived >::policy	policy
	The result policy type. More...

typedef EngineTrait< Derived >::dist_eval_type	dist_eval_type
	The distributed evaluator type. More...

typedef EngineTrait< Derived >::size_type	size_type
	Size type. More...

typedef EngineTrait< Derived >::trange_type	trange_type
	Tiled range type. More...

typedef EngineTrait< Derived >::shape_type	shape_type
	Shape type. More...

typedef EngineTrait< Derived >::pmap_interface	pmap_interface
	Process map interface type. More...

Public Member Functions
template<typename D >
	UnaryEngine (const UnaryExpr< D > &expr)

void	perm_vars (const VariableList &target_vars)
	Set the variable list for this expression. More...

void	init_vars (const VariableList &target_vars)
	Initialize the variable list of this expression. More...

void	init_vars ()
	Initialize the variable list of this expression. More...

void	init_struct (const VariableList &target_vars)
	Initialize result tensor structure. More...

void	init_distribution (World *world, const std::shared_ptr< pmap_interface > &pmap)
	Initialize result tensor distribution. More...

trange_type	make_trange () const
	Non-permuting tiled range factory function. More...

trange_type	make_trange (const Permutation &perm) const
	Permuting tiled range factory function. More...

dist_eval_type	make_dist_eval () const
	Construct the distributed evaluator for this expression. More...

void	print (ExprOStream os, const VariableList &target_vars) const
	Expression print. More...

derived_type &	derived ()
	Cast this object to it's derived type. More...

const derived_type &	derived () const
	Cast this object to it's derived type. More...

const VariableList &	vars () const
	Variable list accessor. More...

Static Public Attributes
static constexpr bool	consumable = true

static constexpr unsigned int	leaves = argument_type::leaves

Protected Attributes
argument_type	arg_
	The argument. More...

World *	world_
	The world where this expression will be evaluated. More...

VariableList	vars_
	The variable list of this expression. More...

Permutation	perm_
	The permutation that will be applied to the result. More...

trange_type	trange_
	The tiled range of the result tensor. More...

shape_type	shape_
	The shape of the result tensor. More...

std::shared_ptr< pmap_interface >	pmap_
	The process map for the result tensor. More...

bool	permute_tiles_
	Result tile permutation flag (`true` == permute tile) More...

Detailed Description

template<typename Derived>
class TiledArray::expressions::UnaryEngine< Derived >

Definition at line 41 of file unary_engine.h.

Member Typedef Documentation

◆ argument_type

template<typename Derived>

typedef EngineTrait<Derived>::argument_type TiledArray::expressions::UnaryEngine< Derived >::argument_type

The argument expression engine type.

Definition at line 48 of file unary_engine.h.

◆ dist_eval_type

template<typename Derived>

typedef EngineTrait<Derived>::dist_eval_type TiledArray::expressions::UnaryEngine< Derived >::dist_eval_type

The distributed evaluator type.

Definition at line 54 of file unary_engine.h.

◆ ExprEngine_

template<typename Derived>

typedef ExprEngine<Derived> TiledArray::expressions::UnaryEngine< Derived >::ExprEngine_

Base class type.

Definition at line 45 of file unary_engine.h.

◆ op_type

template<typename Derived>

typedef EngineTrait<Derived>::op_type TiledArray::expressions::UnaryEngine< Derived >::op_type

The tile operation type.

Definition at line 52 of file unary_engine.h.

◆ pmap_interface

template<typename Derived>

typedef EngineTrait<Derived>::pmap_interface TiledArray::expressions::UnaryEngine< Derived >::pmap_interface

Process map interface type.

Definition at line 60 of file unary_engine.h.

◆ policy

template<typename Derived>

typedef EngineTrait<Derived>::policy TiledArray::expressions::UnaryEngine< Derived >::policy

The result policy type.

Definition at line 53 of file unary_engine.h.

◆ shape_type

template<typename Derived>

typedef EngineTrait<Derived>::shape_type TiledArray::expressions::UnaryEngine< Derived >::shape_type

Shape type.

Definition at line 59 of file unary_engine.h.

◆ size_type

template<typename Derived>

typedef EngineTrait<Derived>::size_type TiledArray::expressions::UnaryEngine< Derived >::size_type

Size type.

Definition at line 57 of file unary_engine.h.

◆ trange_type

template<typename Derived>

typedef EngineTrait<Derived>::trange_type TiledArray::expressions::UnaryEngine< Derived >::trange_type

Tiled range type.

Definition at line 58 of file unary_engine.h.

◆ UnaryEngine_

template<typename Derived>

typedef UnaryEngine<Derived> TiledArray::expressions::UnaryEngine< Derived >::UnaryEngine_

This class type.

Definition at line 44 of file unary_engine.h.

◆ value_type

template<typename Derived>

typedef EngineTrait<Derived>::value_type TiledArray::expressions::UnaryEngine< Derived >::value_type

The result tile type.

Definition at line 51 of file unary_engine.h.

Constructor & Destructor Documentation

◆ UnaryEngine()

template<typename Derived>

template<typename D >

TiledArray::expressions::UnaryEngine< Derived >::UnaryEngine ( const UnaryExpr< D > & expr )

inline

Definition at line 88 of file unary_engine.h.

Member Function Documentation

◆ derived() [1/2]

template<typename Derived>

derived_type& TiledArray::expressions::ExprEngine< Derived >::derived

inline

Cast this object to it's derived type.

Definition at line 186 of file expr_engine.h.

◆ derived() [2/2]

template<typename Derived>

const derived_type& TiledArray::expressions::ExprEngine< Derived >::derived

inline

Cast this object to it's derived type.

Definition at line 189 of file expr_engine.h.

◆ init_distribution()

template<typename Derived>

void TiledArray::expressions::UnaryEngine< Derived >::init_distribution	(	World *	world,
		const std::shared_ptr< pmap_interface > &	pmap
	)

inline

Initialize result tensor distribution.

This function will initialize the world and process map for the result tensor.

Parameters

world	The world were the result will be distributed
pmap	The process map for the result tensor tiles

Definition at line 140 of file unary_engine.h.

◆ init_struct()

template<typename Derived>

void TiledArray::expressions::UnaryEngine< Derived >::init_struct ( const VariableList & target_vars )

inline

Initialize result tensor structure.

This function will initialize the permutation, tiled range, and shape for the left-hand, right-hand, and result tensor.

Parameters

target_vars The target variable list for the result tensor

Definition at line 129 of file unary_engine.h.

◆ init_vars() [1/2]

template<typename Derived>

void TiledArray::expressions::UnaryEngine< Derived >::init_vars ( const VariableList & target_vars )

inline

Initialize the variable list of this expression.

Parameters

target_vars The target variable list for this expression

Definition at line 112 of file unary_engine.h.

◆ init_vars() [2/2]

template<typename Derived>

void TiledArray::expressions::UnaryEngine< Derived >::init_vars ( )

inline

Initialize the variable list of this expression.

Definition at line 118 of file unary_engine.h.

◆ make_dist_eval()

template<typename Derived>

dist_eval_type TiledArray::expressions::UnaryEngine< Derived >::make_dist_eval ( ) const

inline

Construct the distributed evaluator for this expression.

Returns: The distributed evaluator that will evaluate this expression

Definition at line 163 of file unary_engine.h.

◆ make_trange() [1/2]

template<typename Derived>

trange_type TiledArray::expressions::UnaryEngine< Derived >::make_trange ( ) const

inline

Non-permuting tiled range factory function.

Returns: The result tiled range

Definition at line 150 of file unary_engine.h.

◆ make_trange() [2/2]

template<typename Derived>

trange_type TiledArray::expressions::UnaryEngine< Derived >::make_trange ( const Permutation & perm ) const

inline

Permuting tiled range factory function.

Parameters

perm	The permutation to be applied to the tiled range

Returns: The result shape

Definition at line 156 of file unary_engine.h.

◆ perm_vars()

template<typename Derived>

void TiledArray::expressions::UnaryEngine< Derived >::perm_vars ( const VariableList & target_vars )

inline

Set the variable list for this expression.

This function will set the variable list for this expression and its children such that the number of permutations is minimized.

Parameters

target_vars The target variable list for this expression

Definition at line 101 of file unary_engine.h.

Here is the caller graph for this function:

◆ print()

template<typename Derived>

void TiledArray::expressions::UnaryEngine< Derived >::print	(	ExprOStream	os,
		const VariableList &	target_vars
	)		const

inline

Expression print.

Parameters

os	The output stream
target_vars	The target variable list for this expression

Definition at line 182 of file unary_engine.h.

◆ vars()

template<typename Derived>

const VariableList& TiledArray::expressions::ExprEngine< Derived >::vars

inline

Variable list accessor.

Returns: A const reference to the variable list

Definition at line 199 of file expr_engine.h.

Member Data Documentation

◆ arg_

template<typename Derived>

argument_type TiledArray::expressions::UnaryEngine< Derived >::arg_

protected

The argument.

Definition at line 77 of file unary_engine.h.

◆ consumable

template<typename Derived>

constexpr bool TiledArray::expressions::UnaryEngine< Derived >::consumable = true

static

Definition at line 63 of file unary_engine.h.

◆ leaves

template<typename Derived>

constexpr unsigned int TiledArray::expressions::UnaryEngine< Derived >::leaves = argument_type::leaves

static

Definition at line 64 of file unary_engine.h.

◆ perm_

template<typename Derived>

Permutation TiledArray::expressions::ExprEngine< Derived >::perm_

protected

The permutation that will be applied to the result.

Definition at line 66 of file expr_engine.h.

◆ permute_tiles_

template<typename Derived>

bool TiledArray::expressions::ExprEngine< Derived >::permute_tiles_

protected

Result tile permutation flag (true == permute tile)

Definition at line 65 of file expr_engine.h.

◆ pmap_

template<typename Derived>

std::shared_ptr<pmap_interface> TiledArray::expressions::ExprEngine< Derived >::pmap_

protected

The process map for the result tensor.

Definition at line 69 of file expr_engine.h.

◆ shape_

template<typename Derived>

shape_type TiledArray::expressions::ExprEngine< Derived >::shape_

protected

The shape of the result tensor.

Definition at line 68 of file expr_engine.h.

◆ trange_

template<typename Derived>

trange_type TiledArray::expressions::ExprEngine< Derived >::trange_

protected

The tiled range of the result tensor.

Definition at line 67 of file expr_engine.h.

◆ vars_

template<typename Derived>

VariableList TiledArray::expressions::ExprEngine< Derived >::vars_

protected

The variable list of this expression.

Definition at line 64 of file expr_engine.h.

◆ world_

template<typename Derived>

World* TiledArray::expressions::ExprEngine< Derived >::world_

protected

The world where this expression will be evaluated.

Definition at line 63 of file expr_engine.h.

The documentation for this class was generated from the following file:

TiledArray/expressions/unary_engine.h

Public Types

Public Member Functions

Static Public Attributes

Protected Attributes

Detailed Description

template<typename Derived> class TiledArray::expressions::UnaryEngine< Derived >

Member Typedef Documentation

◆ argument_type

◆ dist_eval_type

◆ ExprEngine_

◆ op_type

◆ pmap_interface

◆ policy

◆ shape_type

◆ size_type

◆ trange_type

◆ UnaryEngine_

◆ value_type

Constructor & Destructor Documentation

◆ UnaryEngine()

Member Function Documentation

◆ derived() [1/2]

◆ derived() [2/2]

◆ init_distribution()

◆ init_struct()

◆ init_vars() [1/2]

◆ init_vars() [2/2]

◆ make_dist_eval()

◆ make_trange() [1/2]

◆ make_trange() [2/2]

◆ perm_vars()

◆ print()

◆ vars()

Member Data Documentation

◆ arg_

◆ consumable

◆ leaves

◆ perm_

◆ permute_tiles_

◆ pmap_

◆ shape_

◆ trange_

◆ vars_

◆ world_

template<typename Derived>
class TiledArray::expressions::UnaryEngine< Derived >
