Inheritance diagram for TiledArray::expressions::BlkTsrExprBase< Derived >:

[legend]

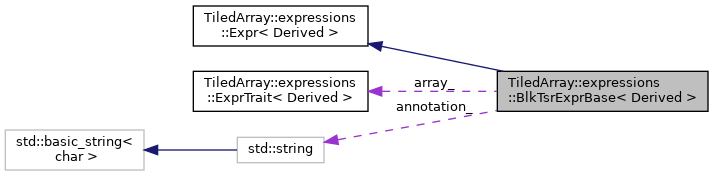

Collaboration diagram for TiledArray::expressions::BlkTsrExprBase< Derived >:

[legend]

Documentation

template<typename Derived>
class TiledArray::expressions::BlkTsrExprBase< Derived >

Block expression.

Template Parameters

Derived The derived class type

Definition at line 109 of file blk_tsr_expr.h.

Public Types
typedef BlkTsrExprBase< Derived >	BlkTsrExprBase_
	This class type. More...

typedef Expr< Derived >	Expr_
	Unary base class type. More...

typedef ExprTrait< Derived >::array_type	array_type
	The array type. More...

typedef ExprTrait< Derived >::reference	reference
	The array reference type. More...

Public Types inherited from TiledArray::expressions::Expr< Derived >
template<typename Derived_ = Derived>
using	engine_t = typename ExprTrait< Derived_ >::engine_type

template<typename Derived_ = Derived>
using	eval_type_t = typename engine_t< Derived_ >::eval_type

typedef Expr< Derived >	Expr_
	This class type. More...

typedef Derived	derived_type
	The derived object type. More...

typedef engine_t< derived_type >	engine_type
	Expression engine type. More...

Public Member Functions
	BlkTsrExprBase (const BlkTsrExprBase_ &)=default

	BlkTsrExprBase (BlkTsrExprBase_ &&)=default

	~BlkTsrExprBase ()=default

BlkTsrExprBase_ &	operator= (const BlkTsrExprBase_ &)=delete

BlkTsrExprBase_ &	operator= (BlkTsrExprBase_ &&)=delete

template<typename Index1 , typename Index2 , typename = std::enable_if_t< TiledArray::detail::is_integral_range_v<Index1> && TiledArray::detail::is_integral_range_v<Index2>>>
	BlkTsrExprBase (reference array, const std::string &annotation, const Index1 &lower_bound, const Index2 &upper_bound)
	Block expression constructor. More...

template<typename PairRange , typename = std::enable_if_t< TiledArray::detail::is_gpair_range_v<PairRange>>>
	BlkTsrExprBase (reference array, const std::string &annotation, const PairRange &bounds)
	Block expression constructor. More...

reference	array () const
	Array accessor. More...

const std::string &	annotation () const
	Tensor annotation accessor. More...

const auto &	lower_bound () const
	Lower bound accessor. More...

const auto &	upper_bound () const
	Upper bound accessor. More...

Public Member Functions inherited from TiledArray::expressions::Expr< Derived >
Expr< Derived > &	set_shape (typename override_type::shape_type const &shape)

Expr< Derived > &	set_world (World &world)

Expr< Derived > &	set_pmap (const std::shared_ptr< typename override_type::pmap_interface > pmap)

	Expr ()=default

	Expr (const Expr_ &)=default

	Expr (Expr_ &&)=default

	~Expr ()=default

Expr_ &	operator= (const Expr_ &)=delete

Expr_ &	operator= (Expr_ &&)=delete

derived_type &	derived ()
	Cast this object to its derived type. More...

const derived_type &	derived () const
	Cast this object to its derived type. More...

template<typename A , bool Alias>
void	eval_to (TsrExpr< A, Alias > &tsr) const
	Evaluate this object and assign it to `tsr`. More...

template<typename A , bool Alias>
void	eval_to (BlkTsrExpr< A, Alias > &tsr) const
	Evaluate this object and assign it to `tsr`. More...

void	print (ExprOStream &os, const BipartiteIndexList &target_indices) const
	Expression print. More...

template<typename Op >
Future< typename Op::result_type >	reduce (const Op &op, World &world) const

template<typename Op >
Future< typename Op::result_type >	reduce (const Op &op) const

template<typename D , typename Op >
Future< typename Op::result_type >	reduce (const Expr< D > &right_expr, const Op &op, World &world) const

template<typename D , typename Op >
Future< typename Op::result_type >	reduce (const Expr< D > &right_expr, const Op &op) const

template<typename TileType = typename EngineTrait<engine_type>::eval_type, typename = TiledArray::detail::enable_if_trace_is_defined_t<TileType>>
Future< result_of_trace_t< TileType > >	trace (World &world) const

template<typename TileType = typename EngineTrait<engine_type>::eval_type, typename = TiledArray::detail::enable_if_trace_is_defined_t<TileType>>
Future< result_of_trace_t< TileType > >	trace () const

Future< typename TiledArray::SumReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	sum (World &world) const

Future< typename TiledArray::SumReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	sum () const

Future< typename TiledArray::ProductReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	product (World &world) const

Future< typename TiledArray::ProductReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	product () const

Future< typename TiledArray::SquaredNormReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	squared_norm (World &world) const

Future< typename TiledArray::SquaredNormReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	squared_norm () const

Future< typename TiledArray::SquaredNormReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	norm (World &world) const

Future< typename TiledArray::SquaredNormReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	norm () const

template<typename Derived_ = Derived>
std::enable_if_t< TiledArray::detail::is_strictly_ordered< TiledArray::detail::numeric_t< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type > >::value, Future< typename TiledArray::MinReduction< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type >::result_type > >	min (World &world) const

template<typename Derived_ = Derived>
std::enable_if_t< TiledArray::detail::is_strictly_ordered< TiledArray::detail::numeric_t< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type > >::value, Future< typename TiledArray::MinReduction< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type >::result_type > >	min () const

template<typename Derived_ = Derived>
std::enable_if_t< TiledArray::detail::is_strictly_ordered< TiledArray::detail::numeric_t< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type > >::value, Future< typename TiledArray::MaxReduction< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type >::result_type > >	max (World &world) const

template<typename Derived_ = Derived>
std::enable_if_t< TiledArray::detail::is_strictly_ordered< TiledArray::detail::numeric_t< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type > >::value, Future< typename TiledArray::MaxReduction< typename EngineTrait< typename ExprTrait< Derived_ >::engine_type >::eval_type >::result_type > >	max () const

Future< typename TiledArray::AbsMinReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	abs_min (World &world) const

Future< typename TiledArray::AbsMinReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	abs_min () const

Future< typename TiledArray::AbsMaxReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	abs_max (World &world) const

Future< typename TiledArray::AbsMaxReduction< typename EngineTrait< engine_type >::eval_type >::result_type >	abs_max () const

template<typename D >
Future< typename TiledArray::DotReduction< typename EngineTrait< engine_type >::eval_type, typename EngineTrait< typename D::engine_type >::eval_type >::result_type >	dot (const Expr< D > &right_expr, World &world) const

template<typename D >
Future< typename TiledArray::DotReduction< typename EngineTrait< engine_type >::eval_type, typename EngineTrait< typename D::engine_type >::eval_type >::result_type >	dot (const Expr< D > &right_expr) const

template<typename D >
Future< typename TiledArray::InnerProductReduction< typename EngineTrait< engine_type >::eval_type, typename EngineTrait< typename D::engine_type >::eval_type >::result_type >	inner_product (const Expr< D > &right_expr, World &world) const

template<typename D >
Future< typename TiledArray::InnerProductReduction< typename EngineTrait< engine_type >::eval_type, typename EngineTrait< typename D::engine_type >::eval_type >::result_type >	inner_product (const Expr< D > &right_expr) const

Protected Member Functions
void	check_valid () const

Protected Attributes
reference	array_
	The array that this expression is bound to. More...

std::string	annotation_
	The array annotation. More...

container::svector< std::size_t >	lower_bound_
	Lower bound of the tile block. More...

container::svector< std::size_t >	upper_bound_
	Upper bound of the tile block. More...

Member Typedef Documentation

◆ array_type

template<typename Derived >

typedef ExprTrait<Derived>::array_type TiledArray::expressions::BlkTsrExprBase< Derived >::array_type

The array type.

Definition at line 113 of file blk_tsr_expr.h.

◆ BlkTsrExprBase_

template<typename Derived >

typedef BlkTsrExprBase<Derived> TiledArray::expressions::BlkTsrExprBase< Derived >::BlkTsrExprBase_

This class type.

Definition at line 111 of file blk_tsr_expr.h.

◆ Expr_

template<typename Derived >

typedef Expr<Derived> TiledArray::expressions::BlkTsrExprBase< Derived >::Expr_

Unary base class type.

Definition at line 112 of file blk_tsr_expr.h.

◆ reference

template<typename Derived >

typedef ExprTrait<Derived>::reference TiledArray::expressions::BlkTsrExprBase< Derived >::reference

The array reference type.

Definition at line 115 of file blk_tsr_expr.h.

Constructor & Destructor Documentation

◆ BlkTsrExprBase() [1/4]

template<typename Derived >

TiledArray::expressions::BlkTsrExprBase< Derived >::BlkTsrExprBase ( const BlkTsrExprBase_ & )

default

◆ BlkTsrExprBase() [2/4]

template<typename Derived >

TiledArray::expressions::BlkTsrExprBase< Derived >::BlkTsrExprBase ( BlkTsrExprBase_ && )

default

◆ ~BlkTsrExprBase()

template<typename Derived >

TiledArray::expressions::BlkTsrExprBase< Derived >::~BlkTsrExprBase ( )

default

◆ BlkTsrExprBase() [3/4]

template<typename Derived >

template<typename Index1 , typename Index2 , typename = std::enable_if_t< TiledArray::detail::is_integral_range_v<Index1> && TiledArray::detail::is_integral_range_v<Index2>>>

TiledArray::expressions::BlkTsrExprBase< Derived >::BlkTsrExprBase	(	reference	array,
		const std::string &	annotation,
		const Index1 &	lower_bound,
		const Index2 &	upper_bound
	)

inline

Block expression constructor.

Template Parameters

Index1	An integral range type
Index2	An integral range type

Parameters

array	The array object
annotation	The array annotation
lower_bound	The lower bound of the tile block
upper_bound	The upper bound of the tile block

Definition at line 219 of file blk_tsr_expr.h.

◆ BlkTsrExprBase() [4/4]

template<typename Derived >

template<typename PairRange , typename = std::enable_if_t< TiledArray::detail::is_gpair_range_v<PairRange>>>

TiledArray::expressions::BlkTsrExprBase< Derived >::BlkTsrExprBase	(	reference	array,
		const std::string &	annotation,
		const PairRange &	bounds
	)

inline

Block expression constructor.

Template Parameters

PairRange Type representing a range of generalized pairs (see TiledArray::detail::is_gpair_v ) the tile block

Definition at line 242 of file blk_tsr_expr.h.

Member Function Documentation

◆ annotation()

template<typename Derived >

const std::string& TiledArray::expressions::BlkTsrExprBase< Derived >::annotation ( ) const

inline

Tensor annotation accessor.

Returns: A const reference to the annotation for this tensor

Definition at line 269 of file blk_tsr_expr.h.

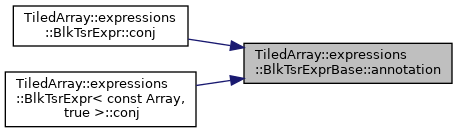

Here is the caller graph for this function:

◆ array()

template<typename Derived >

reference TiledArray::expressions::BlkTsrExprBase< Derived >::array ( ) const

inline

Array accessor.

Returns: a const reference to this array

Definition at line 264 of file blk_tsr_expr.h.

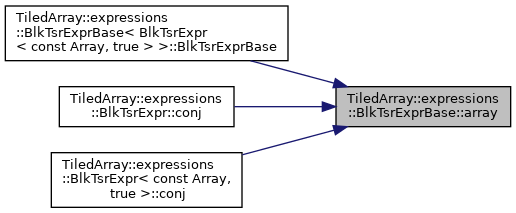

Here is the caller graph for this function:

◆ check_valid()

template<typename Derived >

void TiledArray::expressions::BlkTsrExprBase< Derived >::check_valid ( ) const

inlineprotected

Definition at line 126 of file blk_tsr_expr.h.

Here is the caller graph for this function:

◆ lower_bound()

template<typename Derived >

const auto& TiledArray::expressions::BlkTsrExprBase< Derived >::lower_bound ( ) const

inline

Lower bound accessor.

Returns: The block lower bound

Definition at line 274 of file blk_tsr_expr.h.

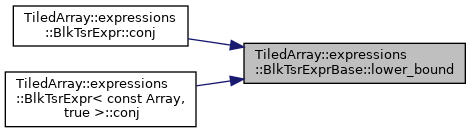

Here is the caller graph for this function:

◆ operator=() [1/2]

template<typename Derived >

BlkTsrExprBase_& TiledArray::expressions::BlkTsrExprBase< Derived >::operator= ( BlkTsrExprBase_ && )

delete

◆ operator=() [2/2]

template<typename Derived >

BlkTsrExprBase_& TiledArray::expressions::BlkTsrExprBase< Derived >::operator= ( const BlkTsrExprBase_ & )

delete

◆ upper_bound()

template<typename Derived >

const auto& TiledArray::expressions::BlkTsrExprBase< Derived >::upper_bound ( ) const

inline

Upper bound accessor.

Returns: The block upper bound

Definition at line 279 of file blk_tsr_expr.h.

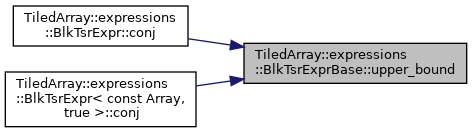

Here is the caller graph for this function:

Member Data Documentation

◆ annotation_

template<typename Derived >

std::string TiledArray::expressions::BlkTsrExprBase< Derived >::annotation_

protected

The array annotation.

Definition at line 120 of file blk_tsr_expr.h.

◆ array_

template<typename Derived >

reference TiledArray::expressions::BlkTsrExprBase< Derived >::array_

protected

The array that this expression is bound to.

Definition at line 119 of file blk_tsr_expr.h.

◆ lower_bound_

template<typename Derived >

container::svector<std::size_t> TiledArray::expressions::BlkTsrExprBase< Derived >::lower_bound_

protected

Lower bound of the tile block.

Definition at line 122 of file blk_tsr_expr.h.

◆ upper_bound_

template<typename Derived >

container::svector<std::size_t> TiledArray::expressions::BlkTsrExprBase< Derived >::upper_bound_

protected

Upper bound of the tile block.

Definition at line 124 of file blk_tsr_expr.h.

The documentation for this class was generated from the following file:

TiledArray/expressions/blk_tsr_expr.h

Documentation

template<typename Derived> class TiledArray::expressions::BlkTsrExprBase< Derived >

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Member Typedef Documentation

◆ array_type

◆ BlkTsrExprBase_

◆ Expr_

◆ reference

Constructor & Destructor Documentation

◆ BlkTsrExprBase() [1/4]

◆ BlkTsrExprBase() [2/4]

◆ ~BlkTsrExprBase()

◆ BlkTsrExprBase() [3/4]

◆ BlkTsrExprBase() [4/4]

Member Function Documentation

◆ annotation()

◆ array()

◆ check_valid()

◆ lower_bound()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ upper_bound()

Member Data Documentation

◆ annotation_

◆ array_

◆ lower_bound_

◆ upper_bound_

template<typename Derived>
class TiledArray::expressions::BlkTsrExprBase< Derived >
